Crafting the Telco RAN Reference Design Specification

In the previous section, the ZTP GitOps pipeline was put in place to deploy our Infrastructure as Code (IaC) and Configuration as Code (CaC). Here, we are going to focus on creating the Configuration as Code (CaC) for the OpenShift clusters that will be installed in the following sections. The configuration of the Telco RAN Reference Design Specification is applied using multiple PolicyGenerator objects.

The PolicyGenerator object is the cornerstone for defining Configuration as Code (CaC) within this ZTP pipeline, enabling scalable and consistent configuration of OpenShift clusters. We described how PolicyGenerator works in detail here, so let’s jump directly to the creation of the different policies.

The configuration defined through these PolicyGenerator CRs is only a subset of what was described in Introduction to Telco Related Infrastructure Operators. This is for clarity and tailored to the lab environment. A full production environment for supporting telco 5G vRAN workloads would have additional configuration not included here, but described in detail as the v4.19 Telco RAN Reference Design Specification in the official documentation.

Below commands must be executed from the infrastructure host if not specified otherwise.

Crafting Common Policies

The common policies apply to every cluster in our infrastructure that matches our binding rule. They are designed for universal configurations that apply to a broad set of clusters sharing an OpenShift release. This reinforces the efficiency gains of managing a large fleet. They are often used to configure things like CatalogSources, operator deployments, etc. that are common to all our clusters.

These configs may vary from release to release, that’s why we create a common-419.yaml file. We will likely have a common configuration profile for each release we deploy.

The PolicyGenerator object utilizes binding rules defined by labels (e.g., common: "ocp419" and logicalGroup: "active") that are pre-set within the ClusterInstance definition, ensuring that these common configurations are automatically applied to the designated clusters across your fleet.

Create the common PolicyGenerator for v4.19 SNOs:

cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-policies/fleet/active/v4.19/common-419.yaml
---
apiVersion: policy.open-cluster-management.io/v1
kind: PolicyGenerator
metadata:
  name: common
placementBindingDefaults:
  name: common-placement-binding
policyDefaults:
  namespace: ztp-policies
  placement:
    labelSelector:
      common: "ocp419"
      logicalGroup: "active"
  remediationAction: inform
  severity: low
  namespaceSelector:
    exclude:
      - kube-*
    include:
      - '*'
  evaluationInterval:
    compliant: 10m
    noncompliant: 10s
policies:
- name: common-config-policy
  policyAnnotations:
    ran.openshift.io/ztp-deploy-wave: "1"
  manifests:
    - path: source-crs/reference-crs/ReduceMonitoringFootprint.yaml
    - path: source-crs/reference-crs/DefaultCatsrc.yaml
      patches:
        - metadata:
            name: redhat-operator-index
          spec:
            image: infra.5g-deployment.lab:8443/redhat/redhat-operator-index:v4.19-1754067857
- name: common-subscriptions-policy
  policyAnnotations:
    ran.openshift.io/ztp-deploy-wave: "2"
  manifests:
    # Ptp operator
    - path: source-crs/reference-crs/PtpSubscriptionNS.yaml
    - path: source-crs/reference-crs/PtpSubscription.yaml
      patches:
        - spec:
            channel: stable
            source: redhat-operator-index
            installPlanApproval: Automatic
    - path: source-crs/reference-crs/PtpSubscriptionOperGroup.yaml
    - path: source-crs/reference-crs/PtpOperatorStatus.yaml
    - path: source-crs/reference-crs/PtpOperatorConfig-SetSelector.yaml
      patches:
        - spec:
            daemonNodeSelector:
              node-role.kubernetes.io/master: ""
    # SRIOV operator
    - path: source-crs/reference-crs/SriovSubscriptionNS.yaml
    - path: source-crs/reference-crs/SriovSubscription.yaml
      patches:
        - spec:
            channel: stable
            source: redhat-operator-index
            config:
              env:
                - name: "DEV_MODE"
                  value: "TRUE"
            installPlanApproval: Automatic
    - path: source-crs/reference-crs/SriovSubscriptionOperGroup.yaml
    - path: source-crs/reference-crs/SriovOperatorStatus.yaml
    # Storage operator
    - path: source-crs/reference-crs/StorageLVMSubscriptionNS.yaml
      patches:
      - metadata:
          annotations:
            workload.openshift.io/allowed: "management"
    - path: source-crs/reference-crs/StorageLVMSubscriptionOperGroup.yaml
    - path: source-crs/reference-crs/StorageLVMSubscription.yaml
      patches:
        - spec:
            channel: stable-4.19
            source: redhat-operator-index
            installPlanApproval: Automatic
    - path: source-crs/reference-crs/LVMOperatorStatus.yaml
    # Cluster Logging
    - path: source-crs/reference-crs/ClusterLogNS.yaml
    - path: source-crs/reference-crs/ClusterLogSubscription.yaml
      patches:
        - spec:
            channel: stable-6.3
            source: redhat-operator-index
            installPlanApproval: Automatic
    - path: source-crs/reference-crs/ClusterLogOperGroup.yaml
    - path: source-crs/reference-crs/ClusterLogOperatorStatus.yaml
EOF

Notice that the operators included in the PolicyGenerator object are foundational for Telco RAN DU workloads, providing essential capabilities like precise timing, high-performance networking, storage, and centralized logging.

Crafting Group Policies

The group policies are tailored for logical groupings of clusters that share specific characteristics or hardware requirements, necessitating specialized tuning. This approach allows for applying performance-critical configurations efficiently across similar clusters. Those policies apply to a group of clusters that typically have something in common, for example they are SNOs, or they have similar hardware: SR-IOV cards, number of CPUs, number of disks, etc.

The CNF team has prepared some common tuning configurations that should be applied on every SNO DU deployed with similar hardware. In this section, we will be crafting these configurations.

If you check the binding rules you can see that we are targeting clusters labeled with group-du-sno: "", logicalGroup: "active" and hardware-type: "hw-type-platform-1". These labels are set in the ClusterInstance definition.

Create the group PolicyGenerator for SNOs:

The policy below configures PTP with software time stamping. This is not supported in production environments, we had to configure it like that to be able to run PTP in the virtual environment.

cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-policies/fleet/active/v4.19/group-du-sno.yaml
---
apiVersion: policy.open-cluster-management.io/v1
kind: PolicyGenerator
metadata:
  name: du-sno
placementBindingDefaults:
  name: group-du-sno-placement-binding
policyDefaults:
  namespace: ztp-policies
  placement:
    labelSelector:
      group-du-sno: ""
      logicalGroup: "active"
      hardware-type: "hw-type-platform-1"
  remediationAction: inform
  severity: low
  # standards: []
  namespaceSelector:
    exclude:
      - kube-*
    include:
      - '*'
  evaluationInterval:
    compliant: 10m
    noncompliant: 10s
policies:
- name: du-sno-group-policy
  policyAnnotations:
    ran.openshift.io/ztp-deploy-wave: "10"
  manifests:
    - path: source-crs/reference-crs/ClusterLogServiceAccount.yaml
    - path: source-crs/reference-crs/ClusterLogServiceAccountAuditBinding.yaml
    - path: source-crs/reference-crs/ClusterLogServiceAccountInfrastructureBinding.yaml
    - path: source-crs/reference-crs/ClusterLogForwarder.yaml
      patches:
      - spec:
          filters:
          - name: ran-du-labels
            type: openshiftLabels
            openshiftLabels:
              cluster-type: "du-sno"
          serviceAccount:
            name: collector
          outputs:
          - name: loki-hub
            type: "loki"
            loki:
              url: https://logging-loki-openshift-logging.apps.hub.5g-deployment.lab/api/logs/v1/tenant-snos
              labelKeys:
              - log_type
              - kubernetes.namespace_name
              - kubernetes.pod_name
              - openshift.cluster_id
            tls:
              insecureSkipVerify: true
              ca:
                key: ca-bundle.crt
                secretName: mtls-tenant-snos
              certificate:
                key: tls.crt
                secretName: mtls-tenant-snos
              key:
                key: tls.key
                secretName: mtls-tenant-snos
          pipelines:
          - name: sno-logs
            inputRefs:
            - infrastructure
            - audit
            outputRefs:
            - loki-hub
            filterRefs:
            - ran-du-labels
    - path: source-crs/custom-crs/logging-mtls-secret.yaml
    - path: source-crs/reference-crs/PtpConfigSlave.yaml
      patches:
      - spec:
          profile:
          - interface: enp4s0
            name: slave
            ptp4lOpts: "-2 -s -A --clientOnly=1 --step_threshold=0.1"
            # ptp4lOpts  -A --clientOnly=1 --step_threshold=0.1 are required for this
            # lab environment running on virtual hardware
            # phc2sysOpts should have -a, and instead we have to specify clock device manually (-s)
            phc2sysOpts: -r -n 24 -s /dev/ptp0
            ptp4lConf: |
              [global]
              #
              # Default Data Set
              #
              twoStepFlag 1
              slaveOnly 1
              priority1 128
              priority2 128
              domainNumber 24
              #utc_offset 37
              clockClass 255
              clockAccuracy 0xFE
              offsetScaledLogVariance 0xFFFF
              free_running 0
              freq_est_interval 1
              dscp_event 0
              dscp_general 0
              dataset_comparison G.8275.x
              G.8275.defaultDS.localPriority 128
              #
              # Port Data Set
              #
              logAnnounceInterval -3
              logSyncInterval -4
              logMinDelayReqInterval -4
              logMinPdelayReqInterval -4
              announceReceiptTimeout 3
              syncReceiptTimeout 0
              delayAsymmetry 0
              fault_reset_interval -4
              neighborPropDelayThresh 20000000
              masterOnly 0
              G.8275.portDS.localPriority 128
              #
              # Run time options
              #
              assume_two_step 0
              logging_level 6
              path_trace_enabled 0
              follow_up_info 0
              hybrid_e2e 0
              inhibit_multicast_service 0
              net_sync_monitor 0
              tc_spanning_tree 0
              tx_timestamp_timeout 50
              unicast_listen 0
              unicast_master_table 0
              unicast_req_duration 3600
              use_syslog 1
              verbose 0
              summary_interval 0
              kernel_leap 1
              check_fup_sync 0
              #clock_class_threshold 7 -> we use threshold 248 since GM doesn't have a GPS source
              clock_class_threshold 248
              #
              # Servo Options
              #
              pi_proportional_const 0.0
              pi_integral_const 0.0
              pi_proportional_scale 0.0
              pi_proportional_exponent -0.3
              pi_proportional_norm_max 0.7
              pi_integral_scale 0.0
              pi_integral_exponent 0.4
              pi_integral_norm_max 0.3
              step_threshold 2.0
              first_step_threshold 0.00002
              max_frequency 900000000
              clock_servo pi
              sanity_freq_limit 200000000
              ntpshm_segment 0
              #
              # Transport options
              #
              transportSpecific 0x0
              ptp_dst_mac 01:1B:19:00:00:00
              p2p_dst_mac 01:80:C2:00:00:0E
              udp_ttl 1
              udp6_scope 0x0E
              uds_address /var/run/ptp4l
              #
              # Default interface options
              #
              clock_type OC
              network_transport L2
              delay_mechanism E2E
              time_stamping software
              tsproc_mode filter
              delay_filter moving_median
              delay_filter_length 10
              egressLatency 0
              ingressLatency 0
              boundary_clock_jbod 0
              #
              # Clock description
              #
              productDescription ;;
              revisionData ;;
              manufacturerIdentity 00:00:00
              userDescription ;
              timeSource 0xA0
            ptpSchedulingPolicy: SCHED_FIFO
            ptpSchedulingPriority: 10
            ptpSettings:
              logReduce: "true"
          recommend:
          - match:
            - nodeLabel: node-role.kubernetes.io/master
            priority: 4
            profile: slave
    - path: source-crs/reference-crs/DisableOLMPprof.yaml
    - path: source-crs/reference-crs/DisableSnoNetworkDiag.yaml
    - path: source-crs/reference-crs/ConsoleOperatorDisable.yaml
    - path: source-crs/reference-crs/SriovOperatorConfig-SetSelector.yaml
      patches:
      - spec:
          disableDrain: true
          enableOperatorWebhook: '{{hub fromConfigMap "" "group-hardware-types-configmap" (printf "%s-supported-sriov-nic" (index .ManagedClusterLabels "hardware-type")) | toBool hub}}'
    - path: source-crs/reference-crs/StorageLVMCluster.yaml
      patches:
      - spec:
          storage:
            deviceClasses:
              - name: vg1
                thinPoolConfig:
                  name: thin-pool-1
                  sizePercent: 90
                  overprovisionRatio: 10
                deviceSelector:
                  paths:
                  - '{{hub fromConfigMap "" "group-hardware-types-configmap" (printf "%s-storage-path" (index .ManagedClusterLabels "hardware-type")) hub}}'
    - path: source-crs/reference-crs/PerformanceProfile-SetSelector.yaml
      patches:
      - spec:
          cpu:
            isolated: '{{hub fromConfigMap "" "group-hardware-types-configmap" (printf "%s-cpu-isolated" (index .ManagedClusterLabels "hardware-type")) hub}}'
            reserved: '{{hub fromConfigMap "" "group-hardware-types-configmap" (printf "%s-cpu-reserved" (index .ManagedClusterLabels "hardware-type")) hub}}'
          hugepages:
            defaultHugepagesSize: '{{hub fromConfigMap "" "group-hardware-types-configmap" (printf "%s-hugepages-default" (index .ManagedClusterLabels "hardware-type"))| hub}}'
            pages:
            - count: '{{hub fromConfigMap "" "group-hardware-types-configmap" (printf "%s-hugepages-count" (index .ManagedClusterLabels "hardware-type")) | toInt hub}}'
              size: '{{hub fromConfigMap "" "group-hardware-types-configmap" (printf "%s-hugepages-size" (index .ManagedClusterLabels "hardware-type")) hub}}'
          numa:
            topologyPolicy: restricted
          realTimeKernel:
            enabled: false
          # WorkloadHints defines the set of upper level flags for different type of workloads.
          # The configuration below is set for a low latency, performance mode.
          workloadHints:
            realTime: true
            highPowerConsumption: false
            perPodPowerManagement: false
          machineConfigPoolSelector:
            pools.operator.machineconfiguration.openshift.io/master: ""
          nodeSelector:
            node-role.kubernetes.io/master: ''
    - path: source-crs/reference-crs/TunedPerformancePatch.yaml
      patches:
      - spec:
          profile:
            - name: performance-patch
              data: |
                [main]
                summary=Configuration changes profile inherited from performance created tuned
                include=openshift-node-performance-openshift-node-performance-profile
                [sysctl]
                # When using the standard (non-realtime) kernel, remove the kernel.timer_migration override from the [sysctl] section
                # kernel.timer_migration=0
                [scheduler]
                group.ice-ptp=0:f:10:*:ice-ptp.*
                group.ice-gnss=0:f:10:*:ice-gnss.*
                group.ice-dplls=0:f:10:*:ice-dplls.*
                [service]
                service.stalld=start,enable
                service.chronyd=stop,disable
          recommend:
            - machineConfigLabels:
                machineconfiguration.openshift.io/role: master
              priority: 19
              profile: performance-patch
EOF

By leveraging hub site templating we are reducing the number of policies on our hub cluster. This makes the clusters’s deployment and maintenance process simpler. Notice that with large fleets of clusters, it can quickly become hard to maintain per-site configurations.

We’re using policy templating, so we need to create a ConfigMap with the templating values to be used. Notice that the following resource contains values for multiple hardware specifications that we may have in our infrastructure. In the policy we just applied, the values are obtained depending on the label hardware-type that each cluster is assigned to. This label is set in the ClusterInstance definition. More information about Template processing can be found in Red Hat Advanced Cluster Management documentation.

cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-policies/fleet/active/v4.19/group-hardware-types-configmap.yaml
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: group-hardware-types-configmap
  namespace: ztp-policies
  annotations:
    argocd.argoproj.io/sync-options: Replace=true
data:
  # PerformanceProfile.yaml
  hw-type-platform-1-cpu-isolated: "4-11"
  hw-type-platform-1-cpu-reserved: "0-3"
  hw-type-platform-1-hugepages-default: "1G"
  hw-type-platform-1-hugepages-count: "4"
  hw-type-platform-1-hugepages-size: "1G"
  hw-type-platform-1-supported-sriov-nic: "false"
  # StorageLVMCluster.yaml
  hw-type-platform-1-storage-path: "/dev/vdb"
  hw-type-platform-2-cpu-isolated: "2-39,42-79"
  hw-type-platform-2-cpu-reserved: "0-1,40-41"
  hw-type-platform-2-hugepages-default: "256M"
  hw-type-platform-2-hugepages-count: "16"
  hw-type-platform-2-hugepages-size: "1G"
  hw-type-platform-2-supported-sriov-nic: "true"
  hw-type-platform-2-storage-path: "/dev/nvme0n1"
EOF

Next, let’s include the DU validator policy crafted by the CNF team. This validator policy is designed to verify the successful application and compliance of the specific Telco RAN RDS group policies, acting as a crucial assurance mechanism within the ZTP workflow.

cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-policies/fleet/active/v4.19/group-du-sno-validator.yaml
---
apiVersion: policy.open-cluster-management.io/v1
kind: PolicyGenerator
metadata:
  name: du-sno-validator
placementBindingDefaults:
  name: group-du-sno-placement-binding
policyDefaults:
  namespace: ztp-policies
  placement:
    labelSelector:
      matchExpressions:
      - key: group-du-sno
        operator: Exists
      - key: logicalGroup
        operator: In
        values: ["active"]
      - key: ztp-done
        operator: DoesNotExist
  remediationAction: inform
  severity: low
  namespaceSelector:
    exclude:
      - kube-*
    include:
      - '*'
  evaluationInterval:
   # This low setting is only valid if the validation policy is disconnected from the cluster at steady-state
   # using a bindingExcludeRules entry with ztp-done
    compliant: 5s
    noncompliant: 10s
policies:
- name: group-du-sno-validator
  policyAnnotations:
    ran.openshift.io/soak-seconds: "30"
    ran.openshift.io/ztp-deploy-wave: "10000"
  manifests:
    - path: source-crs/reference-crs/validatorCRs/informDuValidatorMaster.yaml
EOF

Crafting Site Policies

Site policies handle configurations that are highly specific and often unique to individual clusters or very small, distinct subsets, particularly for hardware like SR-IOV network devices. Contrast this with the broader scope of common and group policies. For example, SR-IOV configurations are often site-specific because network interface card (NIC) models, physical function (PF) names, and desired virtual function (VF) counts can vary significantly across individual hardware hosts.

We are going to create the SR-IOV network device configurations for the OpenShift cluster whose hardware type belongs to hw-type-platform-1 (see the bindingRule). That sort of servers are built with 2 virtual Intel IGB capable SR-IOV network devices. Notice that this policy leverages hub side templating. Therefore, it is targeting all clusters with this specific hardware configuration, not only one cluster.

Create the du-sno-sites PolicyGenerator for the clusters that contain hw-type-platform-1 hardware type in our 5glab site.

cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-policies/fleet/active/v4.19/sites-specific.yaml
---
apiVersion: policy.open-cluster-management.io/v1
kind: PolicyGenerator
metadata:
  name: du-sno-sites
placementBindingDefaults:
  name: group-du-sno-placement-binding
policyDefaults:
  namespace: ztp-policies
  placement:
    labelSelector:
      common: "ocp419"
      logicalGroup: "active"
      hardware-type: "hw-type-platform-1"
  remediationAction: inform
  severity: low
  namespaceSelector:
    exclude:
      - kube-*
    include:
      - '*'
  evaluationInterval:
    compliant: 10m
    noncompliant: 10s
policies:
- name: du-sno-sites-sites-policy
  policyAnnotations:
    ran.openshift.io/ztp-deploy-wave: "100"
  manifests:
    - path: source-crs/reference-crs/SriovNetwork.yaml
      # Using hub templating to obtain the SR-IOV config of each SNO
      patches:
      - spec:
          ipam: '{"type": "host-local","ranges": [[{"subnet": "192.168.100.0/24"}]],"dataDir":
        "/run/my-orchestrator/container-ipam-state-1"}'
          resourceName: '{{hub fromConfigMap "" "site-data-configmap" (printf "%s-resourcename1" .ManagedClusterName) hub}}'
          spoofChk: "off"
          trust: "on"
        metadata:
          name: "sriov-nw-du-netdev"
    - path: source-crs/reference-crs/SriovNetworkNodePolicy-SetSelector.yaml
      patches:
        - metadata:
            name: '{{hub fromConfigMap "" "site-data-configmap" (printf "%s-resourcename1" .ManagedClusterName) hub}}'
          spec:
            nodeSelector:
              node-role.kubernetes.io/master: ""
            deviceType: netdevice
            needVhostNet: false
            mtu: 1500
            linkType: eth
            isRdma: false
            nicSelector:
              vendor: "8086"
              deviceID: "10c9"
              pfNames:
                - '{{hub fromConfigMap "" "site-data-configmap" (printf "%s-sriovnic1" .ManagedClusterName) hub}}'
            numVfs: 2
            priority: 99
            resourceName: '{{hub fromConfigMap "" "site-data-configmap" (printf "%s-resourcename1" .ManagedClusterName) hub}}'
    - path: source-crs/reference-crs/SriovNetwork.yaml
      patches:
        - metadata:
            name: "sriov-nw-du-vfio"
          spec:
            ipam: '{"type": "host-local","ranges": [[{"subnet": "192.168.100.0/24"}]],"dataDir":
          "/run/my-orchestrator/container-ipam-state-1"}'
            resourceName: '{{hub fromConfigMap "" "site-data-configmap" (printf "%s-resourcename2" .ManagedClusterName) hub}}'
            spoofChk: "off"
            trust: "on"
    - path: source-crs/reference-crs/SriovNetworkNodePolicy-SetSelector.yaml
      patches:
        - metadata:
            name: '{{hub fromConfigMap "" "site-data-configmap" (printf "%s-resourcename2" .ManagedClusterName) hub}}'
          spec:
            nodeSelector:
              node-role.kubernetes.io/master: ""
            deviceType: vfio-pci
            mtu: 1500
            linkType: eth
            isRdma: false
            needVhostNet: false
            nicSelector:
              vendor: "8086"
              deviceID: "10c9"
              pfNames:
                - '{{hub fromConfigMap "" "site-data-configmap" (printf "%s-sriovnic2" .ManagedClusterName) hub}}'
            numVfs: 2
            priority: 99
            resourceName: '{{hub fromConfigMap "" "site-data-configmap" (printf "%s-resourcename2" .ManagedClusterName) hub}}'
EOF

By leveraging hub site templating we are reducing the number of policies on our hub cluster. This makes the clusters’s deployment and maintenance process a lot less cumbersome. Notice that with large fleets of clusters, it can quickly become hard to maintain per-site configurations.

We’re using policy templating, so we have to create a ConfigMap with the templating values to be used. Observe that the following manifest contains SR-IOV information for each cluster deployed by our Hub-1. This network information is required to configure the SR-IOV network devices and provide SR-IOV capabilities to the Pods deployed in our SNO clusters. In the previous policy, it is captured the name of the SR-IOV interfaces (PFs) recognized on the host node to present additional virtual functions (VFs) on your OpenShift cluster. Those values are retrieved by obtaining the name of the cluster managed by the hub. The information is not obtained from a label set in the ClusterInstance definition, it is the ManagedClusterName, e.g., the name of the cluster used instead.

cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-policies/fleet/active/v4.19/site-data-hw-1-configmap.yaml
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: site-data-configmap
  namespace: ztp-policies
  annotations:
    argocd.argoproj.io/sync-options: Replace=true
data:
  # SR-IOV configuration
  sno-seed-resourcename1: "igb-enp4s0"
  sno-seed-resourcename2: "igb-enp5s0"
  sno-seed-sriovnic1: "enp4s0"
  sno-seed-sriovnic2: "enp5s0"
  sno-abi-resourcename1: "virt-enp4s0"
  sno-abi-resourcename2: "virt-enp5s0"
  sno-abi-sriovnic1: "enp4s0"
  sno-abi-sriovnic2: "enp5s0"
  sno-ibi-resourcename1: "virt-enp4s0"
  sno-ibi-resourcename2: "virt-enp5s0"
  sno-ibi-sriovnic1: "enp4s0"
  sno-ibi-sriovnic2: "enp5s0"
EOF

More information about Template processing can be found in Red Hat Advanced Cluster Management documentation.

Adding Custom Content (source-crs)

If you require cluster configuration changes outside of the base GitOps Zero Touch Provisioning (ZTP) pipeline configuration, you can add content to the GitOps ZTP library. The base source custom resources (CRs) that are included in the ztp-generate container that you deploy with the GitOps ZTP pipeline can be augmented with custom content as required. So, this is a way to extend the base ZTP library and shows the flexibility of the ZTP pipeline.

We recommend a directory structure to keep reference manifests corresponding to the y-stream release.

In this lab we have to add extra content required by our Cluster Logging configuration. Let’s first extract the predefined source-crs from the ztp-generate container 4.19 version to the reference-crs folder.

podman login infra.5g-deployment.lab:8443 -u admin -p r3dh4t1! --tls-verify=false
podman run --log-driver=none --rm --tls-verify=false infra.5g-deployment.lab:8443/openshift4/ztp-site-generate-rhel8:v4.19.0-1 extract /home/ztp/source-crs --tar | tar x -C ~/5g-deployment-lab/ztp-repository/site-policies/fleet/active/v4.19/source-crs/reference-crs/

Notice that we can add content not included in the ZTP container image by creating the required source CR in the source-crs/custom-crs folder. This separation ensures clean upgrades of the base content while preserving custom additions. Once pushed to our Git repo, we can reference it in any of the common, group or site PolicyGenerators. More information on deploying additional changes to cluster can be found in the docs.

For this lab we need to configure a secret for sending logs to our central location using mTLS authentication. In a production environment you don’t want to put your secrets in plain text in git. Other solutions like Vault are more convinient for this.

cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-policies/fleet/active/v4.19/source-crs/custom-crs/logging-mtls-secret.yaml
apiVersion: v1
kind: Secret
metadata:
  name: mtls-tenant-snos
  namespace: openshift-logging
  annotations:
    ran.openshift.io/ztp-deploy-wave: "10"
type: Opaque
data:
  ca-bundle.crt: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUZtVENDQTRHZ0F3SUJBZ0lVUkZBeUF0citIUVQrZnZlNStSY3VONEQ3bEtzd0RRWUpLb1pJaHZjTkFRRUwKQlFBd1d6RUxNQWtHQTFVRUJoTUNSVk14R2pBWUJnTlZCQW9NRVd4dloyZHBibWN0YjJOdExXRmtaRzl1TVJvdwpHQVlEVlFRTERCRnNiMmRuYVc1bkxXOWpiUzFoWkdSdmJqRVVNQklHQTFVRUF3d0xkR1Z1WVc1MExYTnViM013CklCY05NalV3TmpBME1Ea3pOVEkwV2hnUE1qQTFNakV3TVRrd09UTTFNalJhTUZzeEN6QUpCZ05WQkFZVEFrVlQKTVJvd0dBWURWUVFLREJGc2IyZG5hVzVuTFc5amJTMWhaR1J2YmpFYU1CZ0dBMVVFQ3d3UmJHOW5aMmx1WnkxdgpZMjB0WVdSa2IyNHhGREFTQmdOVkJBTU1DM1JsYm1GdWRDMXpibTl6TUlJQ0lqQU5CZ2txaGtpRzl3MEJBUUVGCkFBT0NBZzhBTUlJQ0NnS0NBZ0VBd2R0OWZTcm02RitmVlhESENKUTJKVFJZdTFSa0h0eWhtMG93VnlCSDcySDAKQ3Y3eGlOVm5VYVpXcmczZVhneXVwR1BJVEpYNzJQNGV1U0JUa0lnOGRYSU9wb0piSUg5L3AvbW1wb3ByZjJ4bgp3eFJRLzNReGYra20vZmo5V3dPelkxaWNPQzZWM0hRSjBoU3JYMFRsRFRzRnVUTkNmeE1KR1Jldk5ZQmNNSGZyClRqTEhtRGtNVys5dlZvcjl4OUxkeGN0WFc5c1dVMU84MzhKT2hSMWlHbWZqMHhxN1RlWXFBR3dhSDFhaDN2c0oKcU93UmlYdTV1RWtxN3JFMkRkcGR3aURHU1pUMFZUbDJCUjRXcnQrZUlxcTdYbzdBdDI0Q2ZVOGtzcVlDT1dyRQowK0NjR0FrZUhqajBBSHFHRys5VW5LNzhnTjYwOWM4S2QzYmthOE5uaXZTTWsvRHVZODVBSENlUHNiTlpXT1NBCnZwSEJnYUVrZ0NGMGFiODZ2NGpMNXVoMm1WdVB2aWFxRE1uV1FzcGRSUE1DUVhQTDd4bDZYUTRtSnNmV1haeVgKV3M5SzJRbWVRNTNxbkl6T3JuYldnYnNwTW9QUWxYbktwa3AydzI3cm9UYXBCK0VVVXY0RzUwSXZIZU1tQy9UKwo4b25qdEU5Tk1obW1lVS81Y1MvQVVtVHZWZGk1NTE0cE5zMnl2UnZyZkozQjZTZlF1KzBEZXdKN3ZoT3FSUzA0Cjk5QlZkNWpSOVduaytTSEZFTjZqU2Jxa2lvNmRjSHBZN1E4TXpNRU1WbkxHUTQ3TWtWaTVkelRDcWszakVtak4KWFFHU3o1MCswS2s3eERzWG9za0c0WmNiUGxpa0Y1ZjBLTDd0dHlQZTdvUkg1M0RTdUtCeVNTOHpQb2k3b2NrQwpBd0VBQWFOVE1GRXdIUVlEVlIwT0JCWUVGQkYvSWhzUFozd0pHa01jNjdnK2dWUHZ0YUtlTUI4R0ExVWRJd1FZCk1CYUFGQkYvSWhzUFozd0pHa01jNjdnK2dWUHZ0YUtlTUE4R0ExVWRFd0VCL3dRRk1BTUJBZjh3RFFZSktvWkkKaHZjTkFRRUxCUUFEZ2dJQkFMYW9GVjQ0bTRmeEkxRExGcjNmQXE4bzBycFE3OVdWRVArVTYwZTNBV0x1R1BQLwpKeTlESlFCdzZuSEtqaDFXU0srWG85K2F0ci9qQjJ0Tk9hZEE4blRCZTZ1dk92RnNnTDU1R3hhYmVrMWNvVlJ2Cm15VTBma096cXFkVWRJejNrMkpzZGNONjZJYTZYdml3RVBuY3VyNHhnNnJhdUd1VDYrOTREK09ZdldtbHM1MGgKUE5mcDhNalBoUEJqL3UyMVBFdWxHV2l1bnhpeHdITzBJTWJzeHRFcU5jaXpZZkdkRnJjT0hsYzdHTVIxM0xhagpqMVZqaGkxZlJUSllDMkh1ZlFUUkJVNTlxNVVNQ0p2OWg0REw3UFh4ZFUvcFU2UWNTcUNqaGRXMjNoNXYzakZmCkQyWnN0US9jWFVkWXVZd0FMNElyVWFwekZqNU8xdVJTMHU4V2k0cnhWYlY2SUdrQm14b1JqWVovQkRCNTh6MEwKRElZRjhORFMvM25MY0sxVzNVNVdXeUVMd01MZVRuQTh0YmloVVJEcG4zN2hDR3JkU1QvbFpSTmt0czBzS0dUVQpVQktoMzM2M2tkY1RzNm45V3Z4TzJjMG1kY3JIMG9EL0pzcEpKM1oweGZLaVlMR0tINFk4WXdhWE8rTGMxZDdBClQ3UjdWcTVwKzdtWVZCVXFWenVaR0NvdmVkckI1UGc0ZVVCdVRLZ3E1OHFtTlVEM3IxS0hOeHhoVU54T1hkdzAKemI5RWNHR0JDaG9paExDOEk2QU8xODFmdENzUm02MnV3eGRKQjBIQWtXN290Z0hOdmFlTHhQbmkxMmhLZ1pQbgpUNjhxeU9HUGVVUEh3NURZQ3pSOE5ZTm9ma1M4OUwwYTlvL2lrYVRqczNicXMrNTB6QnFYYlFHU0NWanEKLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
  tls.crt: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUY5VENDQTkyZ0F3SUJBZ0lVTndKS2xlWk1LcnNBQWoxT1BWODdpblRqd25Vd0RRWUpLb1pJaHZjTkFRRUwKQlFBd1d6RUxNQWtHQTFVRUJoTUNSVk14R2pBWUJnTlZCQW9NRVd4dloyZHBibWN0YjJOdExXRmtaRzl1TVJvdwpHQVlEVlFRTERCRnNiMmRuYVc1bkxXOWpiUzFoWkdSdmJqRVVNQklHQTFVRUF3d0xkR1Z1WVc1MExYTnViM013CklCY05NalV3TmpBME1Ea3pOVE13V2hnUE1qQTFNakV3TVRrd09UTTFNekJhTUZzeEN6QUpCZ05WQkFZVEFrVlQKTVJvd0dBWURWUVFLREJGc2IyZG5hVzVuTFc5amJTMWhaR1J2YmpFYU1CZ0dBMVVFQ3d3UmJHOW5aMmx1WnkxdgpZMjB0WVdSa2IyNHhGREFTQmdOVkJBTU1DM1JsYm1GdWRDMXpibTl6TUlJQ0lqQU5CZ2txaGtpRzl3MEJBUUVGCkFBT0NBZzhBTUlJQ0NnS0NBZ0VBdkdyNG1PT0lrM0FVcVl1aklrRnlmYk1tUjViN2ZQQXNOa1Q1Zm1DVzZDdHYKME5qYWk5UUdjOXRHN1JTcG55VHJ3L0tjdFlRK0ZIQnE3Ym04MFE5OEhvYkNrNHBMK3Q3eUxWOVVJUDNDSGxqcwpDcC84empwVTd4Smo0U1RQenpKeDZJdEczemZ0RGt4SWhFLzRTVzlacjBLcXdQdmhiam8xekFuSnlDNkVVUUo3CmV6UmNqeHIwbGluZVNpcGdhZGd2YXE4a2FSbnQvbWJlT1BvWVU3anpWb0VZeDdlajVucVV3bVF3UFg1MDBIcnIKOVpGb0gzNEVqS0JncEl5L1g2OFJoSFBjL3pOZTBzU2ZOMFhKL0tBRUtEdlRzTjRVSTFFRHB2ZnVTV0t6SVNweQp0VzNUTTlidzE2L3h4Uk9rSkxOMGs5TFNrZnY1TXJodkJacVhKR3ZCUUNPZ1ZlOFpqR2YzZ1Vod0pDMVFLcVppCmJqeVF3OWNzU0dTODhlUVB6V003R3B5L2VRcEFEQi9lWlAzeTdLNGdqa2JpVkFOd0tkQmo4bXhGMU1WSTd0ZnMKZzlYamU5OG9Yc2d1SnlORGhtTDJnRjk3bC9VZXFya25JcDRmTDJ1b3F5MkppUDJEU1lvdU5QaGszNUh4czA2UAovb1pPbjFlTVp2OHBSTUtWQmhjWVMyV3Vob0dKQ1JTVDc3ZXV2bS9mM0loWmxiZC83YUhhNURXMm9aYURHZTgyCkIzVUlvYjB2UUZ4UWd2YVZuUHNockQyMElzQWJoNmIvUXJCd2lUT2ZUMkNPVmNwVWRRdFMxVFJUY3ljNndGWmUKNmxueHZBcWtBNVEvQkdKZHgrdjBxRW1XY1AzQlRqNHF4QTVFTWw4blh6ZjBPc2k0VGNncGszT0tCVnJLWm1FQwpBd0VBQWFPQnJqQ0JxekFkQmdOVkhRNEVGZ1FVTnpGUW5McXY3dG1nRHl5MGlDUWkxSkpYVjU0d0RBWURWUjBUCkFRSC9CQUl3QURBT0JnTlZIUThCQWY4RUJBTUNBcVF3SUFZRFZSMGxBUUgvQkJZd0ZBWUlLd1lCQlFVSEF3RUcKQ0NzR0FRVUZCd01DTUNrR0ExVWRFUVFpTUNDQ0htbHVjM1JoYm1ObExtOXdaVzV6YUdsbWRDMXNiMmRuYVc1bgpMbk4yWXpBZkJnTlZIU01FR0RBV2dCUVJmeUliRDJkOENScERIT3U0UG9GVDc3V2luakFOQmdrcWhraUc5dzBCCkFRc0ZBQU9DQWdFQVlpWXVoNVRqUndqa3F3V3kvbHRpUEJTR3AvL0lqT2RQdy9GMlRFblJYOVllZWd6a0t6dDAKSW9kSUd4bHVtVG9KK1RFejNKRXRhMFBWbzErM2dXOGxRSlFWZ1RIWkRhTzczQUVwZE94ZGM3TVlCRHU1RXJGdQpDYjNWYlBuTnR0dDd5dHN0R0o3cGJtcVFRK21hRmlEbEhUSjNCT2hUMk92NWhqV1A2M1Fua3RrdjdaenRVQTBECldNRE1HSllDaThmRG9ha3QzVmJua2REdDQ2b05kL0NBMFNKOWhGaWhZUjYwNkRtQ2RLRzNoZElGYXNxTGJENVoKMGFrdG1lVTk0NnJnVzN3b1YvL0hjRUV6dHIzeGt2Q3NOWFNQTDR6MGRaTlBZb09pVUJWRmsrUVo1cWV5SXZDdgpzVU5uU0cxbmFESWRXeXk2RnArWThJYTBJTWVhU1FQOCtHbHdld1A2eGorcFl0Qm44ekVRSG5jc1pZU1FMb082CktXbUlVam1yMHlPbS84enQzQkJOVXBqZ0NhcnVPbk1WRnhOL2tJUFNlRmtmYkJVTk9zdjdOL0hUTEdrVld2U3AKV0dLQm8xS0FITVZJMWpLWUUwazRiS0VpbE5iTGVpenlkNHRJMEErZDh5bWhKRys4dnE0Mmgwb2tZOVUyTzBBRQozMW1EV1VNcW1vYW5xZm4vQ3ZqYTFTeFB4K1F3aTFkQ0Y4cWo1RWJDQXphWTJ4TTE0Z1FYMER5Y1crNXZyU0llCmMxaWdBWnZodEFkSVBiV2VkUEFNd2FsaGJvdlhpMkJQYWh1V0VkeVRQRXJBRVdmOE9jNVo2MU1mVy8yL3hXbWoKVHNMYnRRVENCMjFDYm9mRWlJMHkyNWtNMzRsZWx3NjVObjA5Kzl5Y3hrQzQxaFZ5RVNnMkMvOD0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
  tls.key: LS0tLS1CRUdJTiBQUklWQVRFIEtFWS0tLS0tCk1JSUpRZ0lCQURBTkJna3Foa2lHOXcwQkFRRUZBQVNDQ1N3d2dna29BZ0VBQW9JQ0FRQzhhdmlZNDRpVGNCU3AKaTZNaVFYSjlzeVpIbHZ0ODhDdzJSUGwrWUpib0syL1EyTnFMMUFaejIwYnRGS21mSk92RDhweTFoRDRVY0dydAp1YnpSRDN3ZWhzS1Rpa3Y2M3ZJdFgxUWcvY0llV093S24vek9PbFR2RW1QaEpNL1BNbkhvaTBiZk4rME9URWlFClQvaEpiMW12UXFyQSsrRnVPalhNQ2NuSUxvUlJBbnQ3TkZ5UEd2U1dLZDVLS21CcDJDOXFyeVJwR2UzK1p0NDQKK2hoVHVQTldnUmpIdDZQbWVwVENaREE5Zm5UUWV1djFrV2dmZmdTTW9HQ2tqTDlmcnhHRWM5ei9NMTdTeEo4MwpSY244b0FRb085T3czaFFqVVFPbTkrNUpZck1oS25LMWJkTXoxdkRYci9IRkU2UWtzM1NUMHRLUisva3l1RzhGCm1wY2thOEZBSTZCVjd4bU1aL2VCU0hBa0xWQXFwbUp1UEpERDF5eElaTHp4NUEvTll6c2FuTDk1Q2tBTUg5NWsKL2ZMc3JpQ09SdUpVQTNBcDBHUHliRVhVeFVqdTEreUQxZU43M3loZXlDNG5JME9HWXZhQVgzdVg5UjZxdVNjaQpuaDh2YTZpckxZbUkvWU5KaWk0MCtHVGZrZkd6VG8vK2hrNmZWNHhtL3lsRXdwVUdGeGhMWmE2R2dZa0pGSlB2CnQ2NitiOS9jaUZtVnQzL3RvZHJrTmJhaGxvTVo3ellIZFFpaHZTOUFYRkNDOXBXYyt5R3NQYlFpd0J1SHB2OUMKc0hDSk01OVBZSTVWeWxSMUMxTFZORk56SnpyQVZsN3FXZkc4Q3FRRGxEOEVZbDNINi9Tb1NaWncvY0ZPUGlyRQpEa1F5WHlkZk4vUTZ5TGhOeUNtVGM0b0ZXc3BtWVFJREFRQUJBb0lDQURWVVc2KytleG9zRjVVVGdtV0FPNzByClYxTGMvNnFSdWhuVU5QL1pxK3pqMm42MDJrckloTmtIQUJDN2ovVU0rTFJaOTVRQzdhVlFXbHVWL2tUNENvd0QKWFpCd0RPaGhjUTk1azNEUkVrQVBzQ09qdStUTkt0d09Ddm9mTnJoeEVUK2VLRDJtOFRCaVZBWXJNbDNxcCtwTQp4dExmbUNOZ1UzakFibjM3K0pTTFROTUc4NG5IdWVIRTBQZVIvZjhIWXdoaHNUOFVTVUgvOExjVXhvenY1T1FmCm54bHNOM1pWVE1TbW9lYk40NWRjcTJ1eXI5TjJFaWlSZmprazQwZmNYK3RxOWVxL3FmK2pDbU9WRzhJbXNuYUcKMUhpVHF3U0IralFvcWFmWXlWWENVM3haclBWWHlZeHE3dFgycExlRW1hTDdnWUV6WGduR25SbnJjd3NxZXFSRgpxL1VBRy9tcEVaNlNScEJaVWFpWXN5Q0xUb2RmYkY1eFdCME9SV21oMFp3WDJjcExDRlI3SXRJQTZEMVJ3cEJBCnQ0ZnRnTUlOZnNOZlpmTHhRaFFYZkZCUUhicU1PaVJWYnV3UEovdjBoV21yL3hTRlVldkdYZG5vTUlIcHR1dmsKMDB5cVYwVG1zeWhleThiMTRoUmlJT3M5UmFmRGJXWmhXbEMrVzZnN3FyTnJYWG9iQXpqSHVydjRweXhyY3I0WQp1R3B4alpha0NCUWRZbDMxVXV6Sy9pc2ZxRlRjV1lmZ0wycHpDWGdubWF1SXFNREFocXp6QnhmZXUzQlJhS0w4CmF5WHZYNVY2bzNxV0YxUGtVd1d4ZEc4UDVVME03dWg5N3Zzamxldml4dmFFaUZJSW9oRk1iM1p0ZW1seHgvcnYKWXFYTkhBQ2t1TmgxcTRRWlZWU3ZBb0lCQVFEcjdtRjZQcFcrako1d0g4dlNYUUtxdjY5dDFpOVpFT1BPWFpmaQo3c0FFSWUzZjljUWFzcXBwaHpFZWFERG4yWDhGY3ZtTUE2R1p0b1BMTTd5UTdmTXh4VXJhRmZPNE55TTQxVjdYClRPc04zazlBM0NWMGhwVWFmSzNZLzdaeWp6WG54ZUNEd2owd3NaT0lVSVFyVk9aK3BEVDE1Nlo0M1hSaVJpUmIKRnZ4R09mOGRnRjJ1QUxjYUtGUU1SQ0l4RXFRZVJpenZqWFNmZlBjc2R5T2FpaXV4VEZISUZReHE0R0wvT0prLwp2bGhjTFBEYnA4bSs0QUpoVnZlc3hUSm5jUFE1K0tOOTZkNVNmeVMvQW1ySHdjVGdyTllhZm5sMUFWc2ZOT21pCmhaQXVEbFpxR0dRMFMwaStJdUVvNDRsb3orRTVpeStZRTBjbHhaOTE4bld1b3c3ekFvSUJBUURNY2ZHajRkdzUKdkplc1FLaWZmQ3c4VDRQOUxMN2dPS09PMmFaVStodCtWeHVKQUdsZkRoYTdmYm5YcUlOQ2doSjEzK0NLdU5LZgo1ZTJSVnhFWjRNanZ5OUpxakRXNkRySmU5dFNlcjNSaTJ4ZXpHTEhuczVUYWN4eFhFWm5wcWxod1lyK01mVjlFCkQyTjNLRWd4MUpLZjZ0UjhINDFNS2V4aW1LdFpkVXRSUkJzcDRjQkttL0RxeFJqcUYxNS9sTFI4TFBCUU5jTmsKL2ZrYkJGWXhrQnh4Q0RPQU92S1NYNWFhZUF4Wko0OGhqbkhWV2RQRVdBaWJETWtvTmJoWU11ZW9NM2h6b2FLLwpGRTFUU3FTamVJcFhSUTc5OTRCTWlGT3h0V29JNHBVbWlJdWpCTjdCTVdCdkxTRkZJV2xZSkprcmJZRjNtUXNSCmQ1d25qQkY0M1JKYkFvSUJBRlhWaFNzM1I3MXFaVjMvZzJUR0orazlFYkxSSUtxenBWMTMyWUZiUVFwLzJZNEkKV004cHZ5dmpYbkJra1o1WUY0bEEraDhCVnpLWUh6eTNWdHdYWmNudXNEdkZqc1N2Y3FZRG9weUx4RnhvUzhjYQpFSnBqT0MzSnZHbmRKbUJwVDhCQjBsdTlPQXZXSHdtUjJYUDJVR0UwbG52OFNpbGcwQzNNdlA5U3puY3lOR2xrClFUREQyOW10WUY2U0R5cHhVTG9lNTh4RFYzR0t3bFl3QmdqOFNjY1lNQXl0ODdXU2F4SFZZcE81U1daSGgxMHkKbndoTmNUQSt0cDdwbzF2VTBWV2g2c0V0YTQveDU4bUNOSnoyRncxeWMvWnhtdmlCaE1oR3ROVkc2RnlKSk5FMgpqSVlsK1pJTEdJV0t1bndpWFJ0VlV2eHR6dzJqNTA2KzVpZWg5UmNDZ2dFQVNqdUZOYkFvdW40VHhHT2wxbUxMCjNRb3lMcGMwcDAxcGRkRHBhQ2w0R2lPZXg5dnlacVZDODhqdTFiTkdGYndNMytmdUsvQjM2YjhleDRzSmxvL2IKNWRYb0RPL2tBaTZiN1lkS0pHUW9xa3hMQ3FpSTBFeVFXOUU0RlJVN0FYRHNzOEhuTXlmQ2szL1M2YzBpaVpWWgp0OThZVUFsVTBMYllNZVNsTXRJNENzWGo1dzBsT1BIdVJCQlV2NHJFc1NaWmNrME81TkRncGFiaDhFRmUycGdzCis0Mnl4WGloNHl2NkR4UlB4MzlwcFJHSG02UUdGR0N5bnpuQlFHeGhCd1ZVditvUWJrdmVQK3NyT0hiOTJLMUgKN2ZBUlJYMjhoQTFyOWphY3phVVg2dW5oYWN1MjVnYjdzT0orRmcvUHBFV0ZxQk1XMDBvcWpxa1RkZmlSejRUVgp5UUtDQVFFQTVIenM1ZEV6VnBtWE1rb0p6WHh2OGtrMGtVTzZURjhOSTlrL3hncGRsZEJVZitQWTdNOUhCR1JuCmVrTXZjT1hkdlRWRHpTTlovZ3diOEdham5zSTQ4YTE4SXNSbjlOT1JEZTBrVnJmbUE3c2FNNWhQOXVWcnFPcjAKM2RSU2RycTJZc2xucndNUEMwMTFVaG83ZnFBZE55R1l1N201OGwyUXRGYnJtL1ptSlArT2pvMVQwaG00UERDVQpjT2lmeHVwdHVUU3RqK2JqVjBVT0gxY2x5czltRi9Dcjd3c0ttVWt4TENKRDg5a3ErZW53THVZUkpqdWtDNjJxCkJ4Qy9LYVRmVGpXUVNOSmtGc1J5SUNkUDBTOXZ0SWhndXYvV1hRNXJ0VjI5N2tlQkdIT1pjZUJIOVJ1TTZiNUYKVFFlL2ltSytkYlNUeW9hRjR4TnVYMHV1ZkRyZjVBPT0KLS0tLS1FTkQgUFJJVkFURSBLRVktLS0tLQo=
EOF

Crafting Testing Policies

Rigorous testing of policies in a dedicated, isolated environment is an essential practice to ensure stability, validate functionality, and prevent unintended consequences before deploying to production. In order to do that we will create a set of testing policies (which usually will be very similar to the production ones) and these policies will target clusters labeled with logicalGroup: "testing". We won’t go over every file, the files that will be created are the same as in active, also known as production, but with different names and binding policies. Testing policies are intentionally structured to mirror production policies but are explicitly bound to clusters in a "testing" logical group. This enables isolated validation without impacting active deployments.

This structure demonstrates a strategy for testing policies for an upcoming OpenShift release (v4.20) against dedicated testing clusters before promoting them to the current (v4.19) production fleet, ensuring future compatibility.

Create the common testing PolicyGenerator for v4.19 SNOs:

cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-policies/fleet/testing/v4.20/common-v4.20
---
apiVersion: policy.open-cluster-management.io/v1
kind: PolicyGenerator
metadata:
  name: common-test
placementBindingDefaults:
  name: common-placement-binding
policyDefaults:
  namespace: ztp-policies
  placement:
    labelSelector:
      common: "ocp420"
      logicalGroup: "testing"
  remediationAction: inform
  severity: low
  namespaceSelector:
    exclude:
      - kube-*
    include:
      - '*'
  evaluationInterval:
    compliant: 10m
    noncompliant: 10s
policies:
- name: common-test-config-policy
  policyAnnotations:
    ran.openshift.io/ztp-deploy-wave: "1"
  manifests:
    - path: source-crs/reference-crs/ReduceMonitoringFootprint.yaml
    - path: source-crs/reference-crs/DefaultCatsrc.yaml
      patches:
        - metadata:
            name: redhat-operator-index
          spec:
            displayName: disconnected-redhat-operators
            image: infra.5g-deployment.lab:8443/redhat/redhat-operator-index:v4.19-1754067857
- name: common-test-subscriptions-policy
  policyAnnotations:
    ran.openshift.io/ztp-deploy-wave: "2"
  manifests:
    # Ptp operator
    - path: source-crs/reference-crs/PtpSubscriptionNS.yaml
    - path: source-crs/reference-crs/PtpSubscription.yaml
      patches:
        - spec:
            channel: stable
            source: redhat-operator-index
            installPlanApproval: Automatic
    - path: source-crs/reference-crs/PtpSubscriptionOperGroup.yaml
    - path: source-crs/reference-crs/PtpOperatorStatus.yaml
    # SRIOV operator
    - path: source-crs/reference-crs/SriovSubscriptionNS.yaml
    - path: source-crs/reference-crs/SriovSubscription.yaml
      patches:
        - spec:
            channel: stable
            source: redhat-operator-index
            config:
              env:
                - name: "DEV_MODE"
                  value: "TRUE"
            installPlanApproval: Automatic
    - path: source-crs/reference-crs/SriovSubscriptionOperGroup.yaml
    - path: source-crs/reference-crs/SriovOperatorStatus.yaml
    # Storage operator
    - path: source-crs/reference-crs/StorageLVMSubscriptionNS.yaml
      patches:
      - metadata:
          annotations:
            workload.openshift.io/allowed: "management"
    - path: source-crs/reference-crs/StorageLVMSubscriptionOperGroup.yaml
    - path: source-crs/reference-crs/StorageLVMSubscription.yaml
      patches:
        - spec:
            channel: stable-4.19
            source: redhat-operator-index
            installPlanApproval: Automatic
    - path: source-crs/reference-crs/LVMOperatorStatus.yaml
    # Cluster Logging
    - path: source-crs/reference-crs/ClusterLogNS.yaml
    - path: source-crs/reference-crs/ClusterLogSubscription.yaml
      patches:
        - spec:
            channel: stable-6.3
            source: redhat-operator-index
            installPlanApproval: Automatic
    - path: source-crs/reference-crs/ClusterLogOperGroup.yaml
    - path: source-crs/reference-crs/ClusterLogOperatorStatus.yaml
EOF

Create the group testing PolicyGenerator for SNOs:

cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-policies/fleet/testing/v4.20/group-du-sno.yaml
---
apiVersion: policy.open-cluster-management.io/v1
kind: PolicyGenerator
metadata:
  name: du-sno-test
placementBindingDefaults:
  name: group-du-sno-placement-binding
policyDefaults:
  namespace: ztp-policies
  placement:
    labelSelector:
      group-du-sno: ""
      logicalGroup: "testing"
      hardware-type: "hw-type-platform-1"
  remediationAction: inform
  severity: low
  # standards: []
  namespaceSelector:
    exclude:
      - kube-*
    include:
      - '*'
  evaluationInterval:
    compliant: 10m
    noncompliant: 10s
policies:
- name: du-sno-test-group-policy
  policyAnnotations:
    ran.openshift.io/ztp-deploy-wave: "10"
  manifests:
    - path: source-crs/reference-crs/DisableOLMPprof.yaml
    - path: source-crs/reference-crs/DisableSnoNetworkDiag.yaml
    - path: source-crs/reference-crs/ConsoleOperatorDisable.yaml
    - path: source-crs/reference-crs/SriovOperatorConfig-SetSelector.yaml
      patches:
      - spec:
          disableDrain: true
          enableOperatorWebhook: '{{hub fromConfigMap "" "group-hardware-types-configmap" (printf "%s-supported-sriov-nic" (index .ManagedClusterLabels "hardware-type")) | toBool hub}}'
    - path: source-crs/reference-crs/StorageLVMCluster.yaml
      patches:
      - spec:
          storage:
            deviceClasses:
              - name: vg1
                thinPoolConfig:
                  name: thin-pool-1
                  sizePercent: 90
                  overprovisionRatio: 10
                deviceSelector:
                  paths:
                  - '{{hub fromConfigMap "" "group-hardware-types-configmap" (printf "%s-storage-path" (index .ManagedClusterLabels "hardware-type")) hub}}'
    - path: source-crs/reference-crs/PerformanceProfile-SetSelector.yaml
      patches:
      - spec:
          cpu:
            isolated: '{{hub fromConfigMap "" "group-hardware-types-configmap" (printf "%s-cpu-isolated" (index .ManagedClusterLabels "hardware-type")) hub}}'
            reserved: '{{hub fromConfigMap "" "group-hardware-types-configmap" (printf "%s-cpu-reserved" (index .ManagedClusterLabels "hardware-type")) hub}}'
          hugepages:
            defaultHugepagesSize: '{{hub fromConfigMap "" "group-hardware-types-configmap" (printf "%s-hugepages-default" (index .ManagedClusterLabels "hardware-type"))| hub}}'
            pages:
            - count: '{{hub fromConfigMap "" "group-hardware-types-configmap" (printf "%s-hugepages-count" (index .ManagedClusterLabels "hardware-type")) | toInt hub}}'
              size: '{{hub fromConfigMap "" "group-hardware-types-configmap" (printf "%s-hugepages-size" (index .ManagedClusterLabels "hardware-type")) hub}}'
          numa:
            topologyPolicy: restricted
          realTimeKernel:
            enabled: false
          # WorkloadHints defines the set of upper level flags for different type of workloads.
          # The configuration below is set for a low latency, performance mode.
          workloadHints:
            realTime: true
            highPowerConsumption: false
            perPodPowerManagement: false
          machineConfigPoolSelector:
            pools.operator.machineconfiguration.openshift.io/master: ""
          nodeSelector:
            node-role.kubernetes.io/master: ''
    - path: source-crs/reference-crs/TunedPerformancePatch.yaml
      patches:
      - spec:
          profile:
            - name: performance-patch
              data: |
                [main]
                summary=Configuration changes profile inherited from performance created tuned
                include=openshift-node-performance-openshift-node-performance-profile
                [sysctl]
                # When using the standard (non-realtime) kernel, remove the kernel.timer_migration override from the [sysctl] section
                # kernel.timer_migration=0
                [scheduler]
                group.ice-ptp=0:f:10:*:ice-ptp.*
                group.ice-gnss=0:f:10:*:ice-gnss.*
                group.ice-dplls=0:f:10:*:ice-dplls.*
                [service]
                service.stalld=start,enable
                service.chronyd=stop,disable
EOF
cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-policies/fleet/testing/v4.20/group-hardware-types-configmap-test.yaml
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: group-hardware-types-configmap-test
  namespace: ztp-policies
  annotations:
    argocd.argoproj.io/sync-options: Replace=true
data:
  # PerformanceProfile.yaml
  hw-type-platform-1-cpu-isolated: "4-11"
  hw-type-platform-1-cpu-reserved: "0-3"
  hw-type-platform-1-hugepages-default: "1G"
  hw-type-platform-1-hugepages-count: "4"
  hw-type-platform-1-hugepages-size: "1G"
  hw-type-platform-1-supported-sriov-nic: "false"
  hw-type-platform-1-storage-path: "/dev/vdb"
  hw-type-platform-2-cpu-isolated: "2-39,42-79"
  hw-type-platform-2-cpu-reserved: "0-1,40-41"
  hw-type-platform-2-hugepages-default: "256M"
  hw-type-platform-2-hugepages-count: "16"
  hw-type-platform-2-hugepages-size: "1G"
  hw-type-platform-2-supported-sriov-nic: "true"
  hw-type-platform-2-storage-path: "/dev/nvme0n1"
EOF
cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-policies/fleet/testing/v4.20/group-du-sno-validator.yaml
---
apiVersion: policy.open-cluster-management.io/v1
kind: PolicyGenerator
metadata:
  name: du-sno-validator-test
placementBindingDefaults:
  name: group-du-sno-placement-binding
policyDefaults:
  namespace: ztp-policies
  placement:
    labelSelector:
      matchExpressions:
      - key: group-du-sno
        operator: Exists
      - key: logicalGroup
        operator: In
        values: ["testing"]
      - key: ztp-done
        operator: DoesNotExist
  remediationAction: inform
  severity: low
  namespaceSelector:
    exclude:
      - kube-*
    include:
      - '*'
  evaluationInterval:
   # This low setting is only valid if the validation policy is disconnected from the cluster at steady-state
   # using a bindingExcludeRules entry with ztp-done
    compliant: 5s
    noncompliant: 10s
policies:
- name: group-du-sno-validator-test
  policyAnnotations:
    ran.openshift.io/soak-seconds: "30"
    ran.openshift.io/ztp-deploy-wave: "10000"
  manifests:
    - path: source-crs/reference-crs/validatorCRs/informDuValidatorMaster.yaml
EOF

Extract the ZTP source-crs library to the testing environment.

podman login infra.5g-deployment.lab:8443 -u admin -p r3dh4t1! --tls-verify=false
podman run --log-driver=none --rm --tls-verify=false infra.5g-deployment.lab:8443/openshift4/ztp-site-generate-rhel8:v4.19.0-1 extract /home/ztp/source-crs --tar | tar x -C ~/5g-deployment-lab/ztp-repository/site-policies/fleet/testing/v4.20/source-crs/reference-crs/

At this point, policies are the same as in production (active). In the future, you prior want to apply these groups of testing policies for the clusters running in your test environment before promoting changes to production (active) completing the GitOps lifecycle.

Configure Kustomization for Policies

We need to create the required kustomization files as we did for SiteConfigs. They will enable the structured management of policies across different logical groups and OpenShift versions, allowing for modular and scalable policy application.

In this case, policies also require a namespace where they will be created. Therefore, we will create the required namespace and the kustomization files.

Policies need to live in a namespace, let’s add it to the repo:

cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-policies/policies-namespace.yaml
---
apiVersion: v1
kind: Namespace
metadata:
  name: ztp-policies
  labels:
    name: ztp-policies
EOF

A managedclusterbinding is required

cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-policies/managedclusterbinding.yaml
---
apiVersion: cluster.open-cluster-management.io/v1beta2
kind: ManagedClusterSetBinding
metadata:
  name: global
  namespace: ztp-policies
spec:
  clusterSet: global
EOF

Create the required Kustomization files

cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-policies/kustomization.yaml
---
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
  - fleet/
  #- sites/
  - policies-namespace.yaml
  - managedclusterbinding.yaml
EOF
cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-policies/fleet/kustomization.yaml
---
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
  - active/
  - testing/
EOF
cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-policies/fleet/active/kustomization.yaml
---
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
  - v4.19/
  #- v4.20/
EOF
cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-policies/fleet/active/v4.19/kustomization.yaml
---
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
generators:
  - common-419.yaml
  - group-du-sno.yaml
  - sites-specific.yaml
  - group-du-sno-validator.yaml
resources:
  - group-hardware-types-configmap.yaml
  - site-data-hw-1-configmap.yaml
EOF
cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-policies/fleet/testing/kustomization.yaml
---
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
  - v4.20/
EOF
cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-policies/fleet/testing/v4.20/kustomization.yaml
---
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
generators:
  - common-v4.20
  - group-du-sno.yaml
  - group-du-sno-validator.yaml
resources:
  - group-hardware-types-configmap-test.yaml
EOF

At this point, we can commit and push the changes to the Git repo:

cd ~/5g-deployment-lab/ztp-repository
git add --all
git commit -m 'Added policies information'
git push origin main
cd ~

Deploying the Telco 5G RAN RDS using the ZTP GitOps Pipeline

Once the changes are commited to the Git repository, ArgoCD will synchronize the new resources and automatically apply them to the hub cluster. Argo CD functions as the automation engine that translates the Configuration as Code from Git into active policies on the hub cluster.

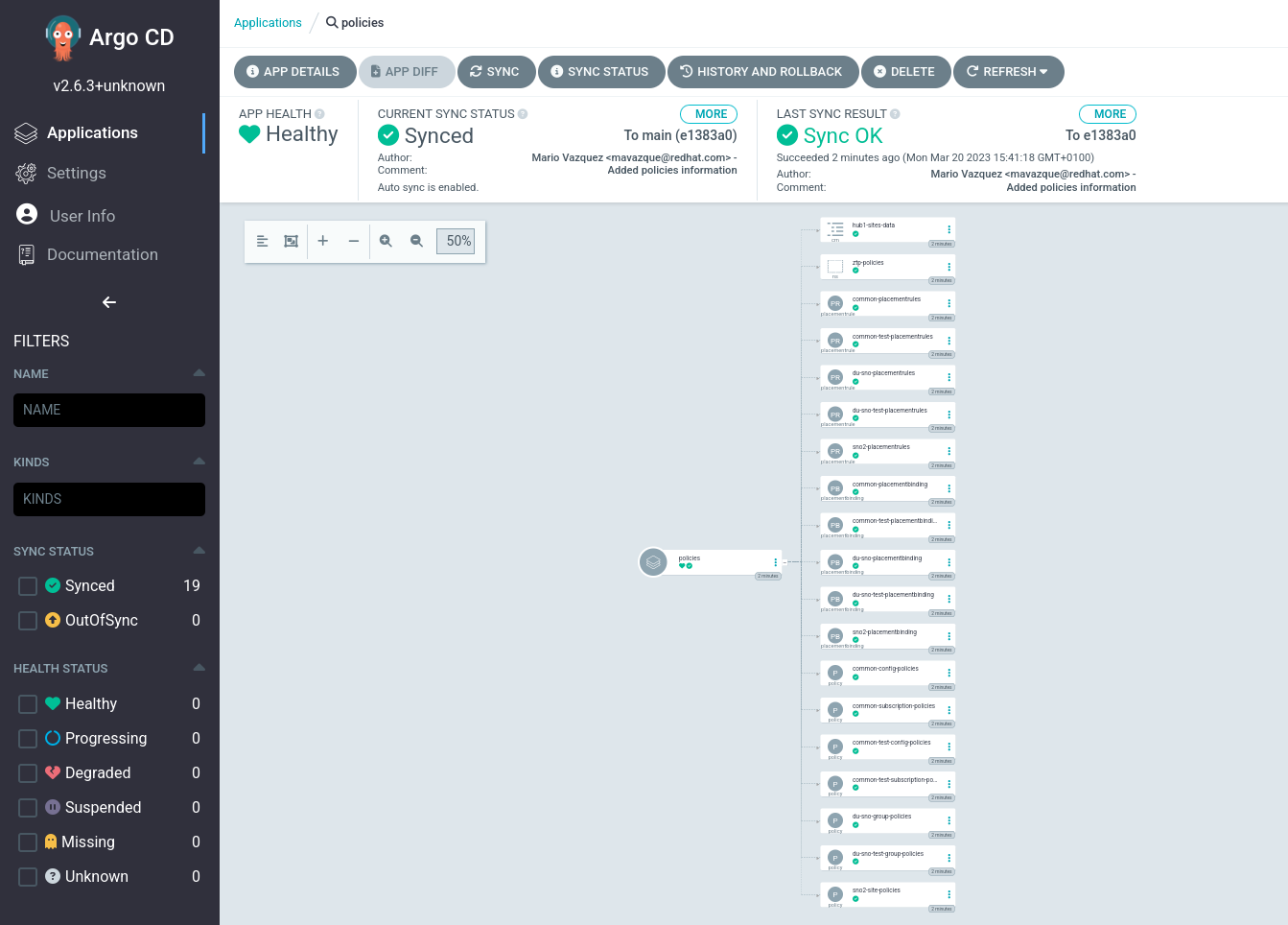

You can see how the policies ZTP GitOps pipeline created all the configuration objects. If we check the policies app this is what we see:

The resulting policies can be seen from the RHACM Governance Console at https://console-openshift-console.apps.hub.5g-deployment.lab/multicloud/home/welcome which serves as the centralized monitoring and management interface for observing the status, compliance, and remediation actions of all deployed policies across the managed fleet. You can also access through the pre-configured Firefox RHACM bookmark icon bookmark.

It may take up to 5 minutes for the policies to show up, this is due to Argo CD syncing period.

Access the RHACM console and login with the OpenShift credentials.

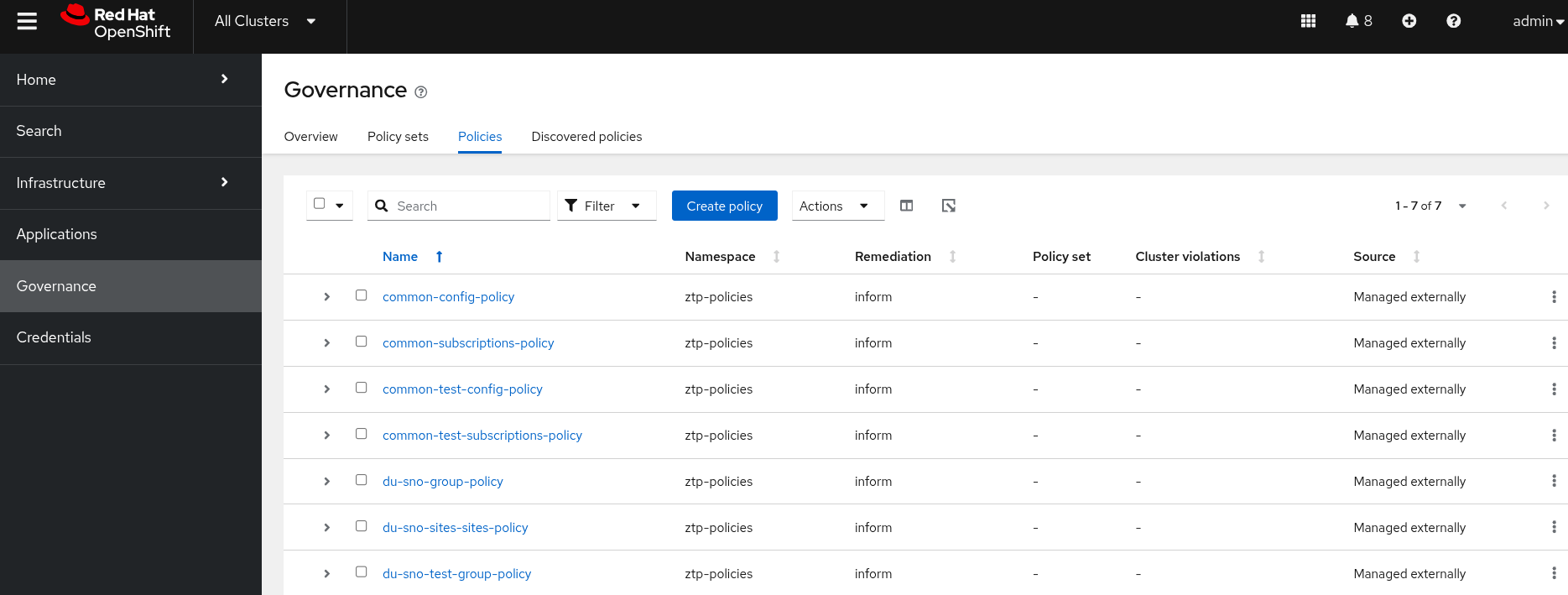

Once you’re in, click on Governance → Policies. You will see the following screen where we can see several policies registered.

This entire process, from defining policies in Git to their automatic application and monitoring, embodies the Zero Touch Provisioning (ZTP) philosophy, enabling large-scale, automated deployments.

The Telco 5G RAN RDS policies are ready but they are not being applied or compared to any cluster yet. That’s because we did not provision any SNO cluster. Let’s fix that by moving to the next section and deploying the first one.
