Deploying an Image Based Install Cluster

Introduction

In the previous section, Creating the Seed Image, we created a seed image of a Single Node OpenShift cluster, version v4.19.0. This seed image will be used to deploy a new SNO in under 20 minutes. This is why, especially in Telco RAN environments where we manage thousands of clusters, this deployment method is preferred.

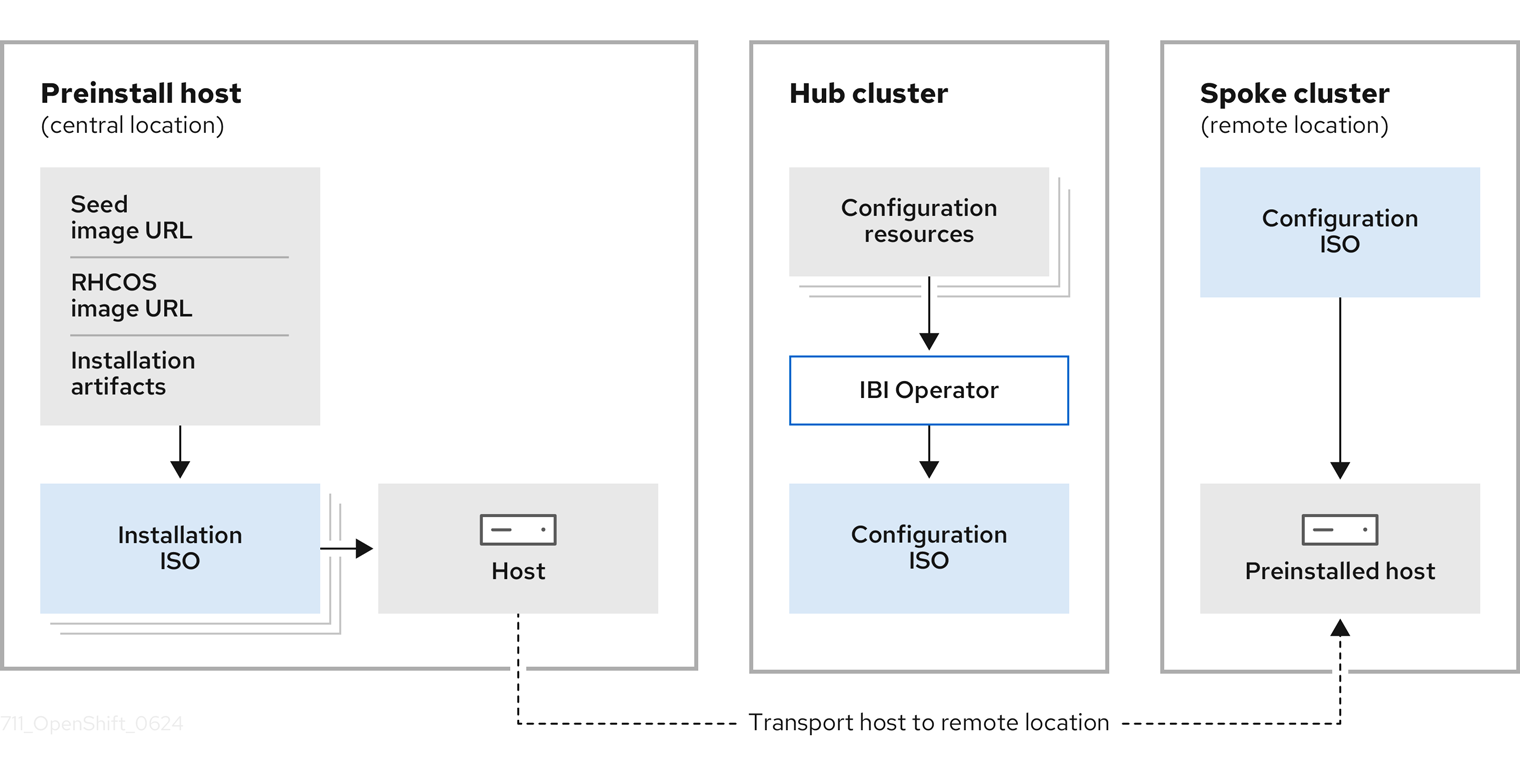

The following diagram illustrates the process we’ll follow to deploy and configure the sno-ibi OpenShift clusters with the RAN DU profile:

A seed image has already been created and stored in our container registry.
The appropriate RHCOS images are available on a HTTP server deployed in the infrastructure server.
The ImageBasedInstallationConfig CR is provided and will be used by the openshift-install binary to create the installation ISO.
The installation ISO is remotely mounted to the sno-ibi, and the preinstallation process begins.

Once preinstallation is complete, the sno-ibi will shut down. At this point, in a Telco RAN scenario, the thousands of SNO clusters that were preinstalled at the customer premises would be transported to remote locations. In this lab, once the sno-ibi arrives at the remote location, the SNO is ready to be reconfigured and complete the installation.

The Image Based Install (IBI) Operator, running in the hub cluster, takes the site-specific configuration resources (ImageClusterInstall, ClusterDeployment, BaremetalHost, etc.) and creates the Configuration ISO.
The configuration ISO is mounted in the sno-ibi, and the host is booted.
The Lifecycle-Agent Operator, included in the seed image and thus available in the sno-ibi, detects the configuration ISO and starts the reconfiguration process until the OpenShift cluster is fully deployed.

Bare Metal Node Details

The details for the bare-metal node we want to provision as sno-ibi are as follows:

RedFish Endpoint: redfish-virtualmedia://192.168.125.1:9000/redfish/v1/Systems/local/sno-ibi
MAC Address: aa:aa:aa:aa:04:01
Primary disk: /dev/vda
BMC User: admin
BMC Password: admin

Creating the Installation ISO

To create the installation ISO, we’ll first create a working directory on the infrastructure node.

mkdir -p ~/5g-deployment-lab/imagebaseinstall/ibi-iso-workdir
cd ~/5g-deployment-lab/imagebaseinstall/

Next, create the ImageBasedInstallationConfig. Note that the seedImage spec points to the container registry where the seed image we created was pushed.

cat <<EOF > ~/5g-deployment-lab/imagebaseinstall/ibi-iso-workdir/image-based-installation-config.yaml
---
apiVersion: v1beta1
kind: ImageBasedInstallationConfig
metadata:
  name: example-image-based-installation-config
seedImage: infra.5g-deployment.lab:8443/ibi/lab5gran:v4.19.0
seedVersion: 4.19.0
extraPartitionStart: "-60G"
installationDisk: "/dev/vda"
sshKey: "ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAACAQC5pFKFLOuxrd9Q/TRu9sRtwGg2PV+kl2MHzBIGUhCcR0LuBJk62XG9tQWPQYTQ3ZUBKb6pRTqPXg+cDu5FmcpTwAKzqgUb6ArnjECxLJzJvWieBJ7k45QzhlZPeiN2Omik5bo7uM/P1YIo5pTUdVk5wJjaMOb7Xkcmbjc7r22xY54cce2Wb7B1QDtLWJkq++eJHSX2GlEjfxSlEvQzTN7m2N5pmoZtaXpLKcbOqtuSQSVKC4XPgb57hgEs/ZZy/LbGGHZyLAW5Tqfk1JCTFGm6Q+oOd3wAOF1SdUxM7frdrN3UOB12u/E6YuAx3fDvoNZvcrCYEpjkfrsjU91oz78aETZV43hOK9NWCOhdX5djA7G35/EMn1ifanVoHG34GwNuzMdkb7KdYQUztvsXIC792E2XzWfginFZha6kORngokZ2DwrzFj3wgvmVyNXyEOqhwi6LmlsYdKxEvUtiYhdISvh2Y9GPrFcJ5DanXe7NVAKXe5CyERjBnxWktqAPBzXJa36FKIlkeVF5G+NWgufC6ZWkDCD98VZDiPP9sSgqZF8bSR4l4/vxxAW4knKIZv11VX77Sa1qZOR9Ml12t5pNGT7wDlSOiDqr5EWsEexga/2s/t9itvfzhcWKt+k66jd8tdws2dw6+8JYJeiBbU63HBjxCX+vCVZASrNBjiXhFw=="
pullSecret: '{"auths": {"infra.5g-deployment.lab:8443": {"auth": "YWRtaW46cjNkaDR0MSE="}}}'
ignitionConfigOverride: '{"ignition":{"version":"3.2.0"},"storage":{"files":[{"path":"/etc/containers/policy.json","mode":420,"overwrite":true,"contents":{"source":"data:text/plain;charset=utf-8;base64,ewogICAgImRlZmF1bHQiOiBbCiAgICAgICAgewogICAgICAgICAgICAidHlwZSI6ICJpbnNlY3VyZUFjY2VwdEFueXRoaW5nIgogICAgICAgIH0KICAgIF0sCiAgICAidHJhbnNwb3J0cyI6CiAgICAgICAgewogICAgICAgICAgICAiZG9ja2VyLWRhZW1vbiI6CiAgICAgICAgICAgICAgICB7CiAgICAgICAgICAgICAgICAgICAgIiI6IFt7InR5cGUiOiJpbnNlY3VyZUFjY2VwdEFueXRoaW5nIn1dCiAgICAgICAgICAgICAgICB9CiAgICAgICAgfQp9"}}]}}'
shutdown: true
imageDigestSources:
  - mirrors:
    - infra.5g-deployment.lab:8443/multicluster-engine
    source: registry.redhat.io/multicluster-engine
  - mirrors:
    - infra.5g-deployment.lab:8443/openshift-gitops-1
    source: registry.redhat.io/openshift-gitops-1
  - mirrors:
    - infra.5g-deployment.lab:8443/rh-sso-7
    source: registry.redhat.io/rh-sso-7
  - mirrors:
    - infra.5g-deployment.lab:8443/lvms4
    source: registry.redhat.io/lvms4
  - mirrors:
    - infra.5g-deployment.lab:8443/openshift4
    source: registry.redhat.io/openshift4
  - mirrors:
    - infra.5g-deployment.lab:8443/rhacm2
    source: registry.redhat.io/rhacm2
  - mirrors:
    - infra.5g-deployment.lab:8443/rhel8
    source: registry.redhat.io/rhel8
  - mirrors:
    - infra.5g-deployment.lab:8443/oadp
    source: registry.redhat.io/oadp
  - mirrors:
    - infra.5g-deployment.lab:8443/openshift-logging
    source: registry.redhat.io/openshift-logging
  - mirrors:
    - infra.5g-deployment.lab:8443/rh-osbs
    source: quay.io/prega/test/rh-osbs
  - mirrors:
    - infra.5g-deployment.lab:8443/openshift-release-dev/ocp-v4.0-art-dev
    - infra.5g-deployment.lab:8443/openshift/release
    source: quay.io/openshift-release-dev/ocp-v4.0-art-dev
  - mirrors:
    - infra.5g-deployment.lab:8443/openshift-release-dev
    source: quay.io/openshift-release-dev
  - mirrors:
    - infra.5g-deployment.lab:8443/openshift/release-images
    source: quay.io/openshift-release-dev/ocp-release
networkConfig:
    interfaces:
      - name: enp3s0
        type: ethernet
        state: up
        ipv4:
          enabled: true
          dhcp: true
          auto-dns: true
        ipv6:
          enabled: false
    routes:
      config:
      - destination: 0.0.0.0/0
        metric: 150
        next-hop-address: 192.168.125.1
        next-hop-interface: enp3s0
additionalTrustBundle: |
  -----BEGIN CERTIFICATE-----
  MIIFSzCCAzOgAwIBAgIUEz9Cc3eC77zRr/y6Eg7wPLzjYBswDQYJKoZIhvcNAQEL
  BQAwIjEgMB4GA1UEAwwXaW5mcmEuNWctZGVwbG95bWVudC5sYWIwIBcNMjIxMTIx
  MTcwMDIwWhgPMjA1MDA0MDcxNzAwMjBaMCIxIDAeBgNVBAMMF2luZnJhLjVnLWRl
  cGxveW1lbnQubGFiMIICIjANBgkqhkiG9w0BAQEFAAOCAg8AMIICCgKCAgEAm/dG
  FbJkusaOpMlDJ9GJ1+Z3Y2G0/RxVRuqZ5E7ufZk69vp9DaERclN/KwiTNMoRUvcZ
  gtIj2HAfaN8L7FfwN8qqMfeJg/fdh9X0sqNydMaZ/fSA60LxmUqmU4e7g01obTmH
  e6j2vjRprDDzfE1683VvgWkecroeG4mujHUUREHs9xfgoW7+nHDpKWZ1vLaZdFKy
  Zrzz1IBvPo+DxgL+3n8orb0aM3uQdufQ2uHZ2fYrxrKUzIVFv+CTT7ctEG/PjQxJ
  tjswizCG6Obk9+B3CMp/s6mT6W7P9xzpbW3aRZLMxSR3/lSAxpWTP/57G3ZyXoNJ
  Cp2UtZEyxRGG1M0f3epzvu4H8JYuXTs/+w6JRLJTN7BF+dThuDKCmbkzq7NzJ/Kq
  ln3qEvFVgMKLprkY7hzU/e/Egr6QA26c2nvwJ2vV5COJrqaPSq52NubseVGPnK2s
  kkKWdf4wPwE1/LrbcjxpcUwJysy+oOmowYhx8X8GUUBZk8ejupYkg/gGop2F9JWD
  sOwmWqRBqn7yKJF4GyJZ0h62xhEfQdBHKub6VLfh6GFNrNHvNpy+DFq3nWGKnV7j
  y5wxx2bR5exN/qZ8wyaFq5k9tVLFd1CMAzQkWkmT9EpI6y4Ux9tPGXgB6h6yjjnK
  gxbLH84ejwDaaiSc2NBVP+47b7Vhoiw4++hNBqcCAwEAAaN3MHUwHQYDVR0OBBYE
  FGQeCqTJ5HZJIXNKx2t7dY+fRYo1MB8GA1UdIwQYMBaAFGQeCqTJ5HZJIXNKx2t7
  dY+fRYo1MA8GA1UdEwEB/wQFMAMBAf8wIgYDVR0RBBswGYIXaW5mcmEuNWctZGVw
  bG95bWVudC5sYWIwDQYJKoZIhvcNAQELBQADggIBAEvsOv4uVMHUZrFQrwUYJRV7
  MC/FB0bgZZ1VhqpL+7+W98+HEYVZRuK9IKjGRfen9wOrLI6hc6zZYOwMDJgfuFwd
  X6qv/HZKp+TfZrFu1IhgDeTPkJX7t7ECD63BgOSNc8OgmGL34dP5qCB3qaSzuP9x
  mukIAZyvHwf2ZfWzrpvR9GLzTuh01GHqQyojC9ntWvlzgKec3nZNFt8tWRyMraAr
  C/a++HeOlZCeRtH9gSOy49H1B7/kfTwFw/Y/h0oVMpH6x8dewyuefe8Q5fvURO3T
  y4B/esUA9R/h971BGIoYk5pAZAJdkD8GAmegyj47vFg6mw095dwB1eNAD7ddqdQn
  RCqwrqYEV1TExI23mC0oiDck0RY8FWI+Q034MOnZFn6Dv6EYMF4IBjJIJICMqvSf
  MA/AXZ111P5/5j+qODTwJ/IDhiT46HMY/SN3MW96uZuJKchJchMNQG+MOuTJb6gd
  cVVyItPgufANPzlf4GpF0+OaOMRjg2BdeRJKluWhie1rSKT/DpvB9ZBWU6ng/MFa
  oW5xpMLuZIUF45kP2ZhQhbRA2zjIaZ8XPgaHPNr4INhSW5pqqLISZCJvkMJV07eT
  s+KzXHlydQpzajOOzwRgq+dIGl6y4GYM1Y0EElHY7S/LvJBNpcw8BDjWmZfpie0y
  /fp7Z8v3m9S2+TmGjDVC
  -----END CERTIFICATE-----
EOF

Create the Installation ISO by running the following command:

openshift-install image-based create image --dir ibi-iso-workdir

Verify that the rhcos-ibi.iso image has been created in our working directory:

 ls -l ~/5g-deployment-lab/imagebaseinstall/ibi-iso-workdir

total 1250304
-rw-r--r--. 1 root root 1280311296 Feb 25 12:05 rhcos-ibi.iso

At this stage, we’re ready to manually boot the sno-ibi with the Installation ISO we created. First, move the ISO to a location accessible to the host for installation. Let’s copy it to the HTTP server available in our infrastructure:

cp ~/5g-deployment-lab/imagebaseinstall/ibi-iso-workdir/rhcos-ibi.iso /opt/webcache/data/

Pre-Installing the Host

Now we are ready to boot sno-ibi with the Installation ISO. Run the following command from the infrastructure host:

We’re using the kcli tool, a command-line interface for managing virtual machines and bare-metal nodes, to boot the server from the ISO by leveraging the RedFish API. You can boot the server using other methods as needed.

kcli start baremetal -u admin -p admin -P iso_url=http://192.168.125.1:8080/rhcos-ibi.iso https://192.168.125.1:9000/redfish/v1/Systems/local/sno-ibi

The sno-ibi will then boot and the preinstallation process will start. You can monitor the process by connecting to the sno-ibi via SSH. The output will be similar to the following:

The pre-installation process is complete once the sno-ibi is automatically powered off.

ssh -i ~/.ssh/snokey core@192.168.125.50

journalctl -f

...
Feb 04 10:37:52 ocp-sno-ibi systemd[1]: Starting SNO Image-based Installation...
Feb 04 10:37:52 ocp-sno-ibi systemd[1]: iscsi.service: Unit cannot be reloaded because it is inactive.
Feb 04 10:37:53 ocp-sno-ibi systemd[1]: var-lib-containers-storage-overlay-opaque\x2dbug\x2dcheck2861559422-merged.mount: Deactivated successfully.
Feb 04 10:37:53 ocp-sno-ibi podman[1625]: 2025-02-04 10:37:53.120804852 +0000 UTC m=+0.201463935 system refresh
Feb 04 10:37:53 ocp-sno-ibi install-rhcos-and-restore-seed.sh[1625]: Trying to pull infra.5g-deployment.lab:8443/ibi/lab5gran:v4.19.0...
Feb 04 10:37:53 ocp-sno-ibi install-rhcos-and-restore-seed.sh[1625]: Getting image source signatures
Feb 04 10:37:53 ocp-sno-ibi install-rhcos-and-restore-seed.sh[1625]: Copying blob sha256:93570925bc4c04f7a453bd0eb530ddad84ea634c54defef1ec2a6410ad1eb683
...
Feb 04 10:38:06 ocp-sno-ibi install-rhcos-and-restore-seed.sh[1795]: time="2025-02-04 10:38:06" level=info msg="IBI preparation process has started"
Feb 04 10:38:06 ocp-sno-ibi install-rhcos-and-restore-seed.sh[1795]: time="2025-02-04 10:38:06" level=info msg="Start preparing disk"
Feb 04 10:38:06 ocp-sno-ibi install-rhcos-and-restore-seed.sh[1795]: time="2025-02-04 10:38:06" level=info msg="Cleaning up /dev/vda disk"
Feb 04 10:38:06 ocp-sno-ibi install-rhcos-and-restore-seed.sh[1795]: time="2025-02-04 10:38:06" level=info msg="Start cleaning up device /dev/vda"
Feb 04 10:38:06 ocp-sno-ibi install-rhcos-and-restore-seed.sh[1795]: time="2025-02-04 10:38:06" level=info msg="Executing vgs with args [--noheadings -o vg_name,pv_name]"
Feb 04 10:38:06 ocp-sno-ibi install-rhcos-and-restore-seed.sh[1795]: time="2025-02-04 10:38:06" level=info msg="Executing pvs with args [--noheadings -o pv_name]"
Feb 04 10:38:06 ocp-sno-ibi install-rhcos-and-restore-seed.sh[1795]: time="2025-02-04 10:38:06" level=info msg="Executing dmsetup with args [ls]"
Feb 04 10:38:06 ocp-sno-ibi install-rhcos-and-restore-seed.sh[1795]: time="2025-02-04 10:38:06" level=info msg="Executing mdadm with args [-v --query --detail --scan]"
Feb 04 10:38:06 ocp-sno-ibi install-rhcos-and-restore-seed.sh[1795]: time="2025-02-04 10:38:06" level=info msg="Executing wipefs with args [--all --force /dev/vda]"
Feb 04 10:38:06 ocp-sno-ibi install-rhcos-and-restore-seed.sh[1795]: time="2025-02-04 10:38:06" level=info msg="Writing image to disk"
Feb 04 10:38:06 ocp-sno-ibi install-rhcos-and-restore-seed.sh[1795]: time="2025-02-04 10:38:06" level=info msg="Executing coreos-installer with args [install /dev/vda]"
...
Feb 04 10:39:43 ocp-sno-ibi install-rhcos-and-restore-seed.sh[1795]: time="2025-02-04 10:39:43" level=info msg="Precaching imaging"
Feb 04 10:39:43 ocp-sno-ibi install-rhcos-and-restore-seed.sh[1795]: time="2025-02-04 10:39:43" level=info msg="Path doesn't exist, skipping chrootpath/host"
Feb 04 10:39:43 ocp-sno-ibi install-rhcos-and-restore-seed.sh[1795]: time="2025-02-04T10:39:43Z" level=info msg="Will attempt to pull 84 images"
Feb 04 10:39:43 ocp-sno-ibi install-rhcos-and-restore-seed.sh[1795]: time="2025-02-04T10:39:43Z" level=info msg="Configured precaching job to concurrently pull 10 images."
...
Feb 04 10:41:22 ocp-sno-ibi install-rhcos-and-restore-seed.sh[1795]: time="2025-02-04T10:41:22Z" level=info msg="Completed executing pre-caching"
Feb 04 10:41:22 ocp-sno-ibi install-rhcos-and-restore-seed.sh[1795]: time="2025-02-04T10:41:22Z" level=info msg="Failed to pre-cache the following images:"
Feb 04 10:41:22 ocp-sno-ibi systemd[1]: var-lib-containers-storage-overlay.mount: Deactivated successfully.
Feb 04 10:41:22 ocp-sno-ibi install-rhcos-and-restore-seed.sh[1795]: time="2025-02-04T10:41:22Z" level=info msg="quay.io/openshift-release-dev/ocp-v4.0-art-dev@sha256:bcb68cf733405788242e599946ae51e3369edd3ceb6dd57a2a07531d75267f23, but found locally after downloading other images"
Feb 04 10:41:22 ocp-sno-ibi install-rhcos-and-restore-seed.sh[1795]: time="2025-02-04T10:41:22Z" level=info msg="Pre-cached images successfully."
Feb 04 10:41:22 ocp-sno-ibi install-rhcos-and-restore-seed.sh[1795]: time="2025-02-04 10:41:22" level=info msg="Executing ostree with args [admin undeploy --sysroot /mnt 1]"
Feb 04 10:41:22 ocp-sno-ibi ostree[5337]: Starting syncfs() for system root
Feb 04 10:41:22 ocp-sno-ibi ostree[5337]: Completed syncfs() for system root in 1 ms
Feb 04 10:41:22 ocp-sno-ibi ostree[5337]: Starting freeze/thaw cycle for system root
Feb 04 10:41:22 ocp-sno-ibi ostree[5337]: Completed freeze/thaw cycle for system root in 31 ms
Feb 04 10:41:22 ocp-sno-ibi ostree[5337]: Bootloader updated; bootconfig swap: yes; bootversion: boot.1.1, deployment count change: -1
...
Broadcast message from root@localhost (Tue 2025-02-04 10:41:25 UTC):
...
The system will power off now!

Creating the Configuration ISO

DO NOT continue with this section until the host has been powered off.

With the host now powered off, we can complete the installation by reconfiguring the cluster. The Image Based Install (IBI) Operator, running in the hub cluster, is responsible for creating the configuration ISO and booting the host with it attached.

Let’s verify that the IBI Operator is installed and running in the multicluster-engine namespace of the hub cluster:

oc --kubeconfig ~/hub-kubeconfig get pods -n multicluster-engine -lapp=image-based-install-operator

NAME                                            READY   STATUS    RESTARTS   AGE
image-based-install-operator-7f7659f86c-cd46k   2/2     Running   0          5h

Once we’ve confirmed that the operator is running in our hub cluster, we can start creating the site-specific configuration resources. First, create the target cluster namespace:

cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-configs/pre-reqs/sno-ibi/ns.yaml
---
apiVersion: v1
kind: Namespace
metadata:
  name: sno-ibi
EOF

Next, we need the authentication credentials to pull the seed container image from the registry:

cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-configs/pre-reqs/sno-ibi/pull-secret.yaml
---
apiVersion: v1
kind: Secret
metadata:
  name: disconnected-registry-pull-secret
  namespace: sno-ibi
stringData:
  .dockerconfigjson: '{"auths":{"infra.5g-deployment.lab:8443":{"auth":"YWRtaW46cjNkaDR0MSE="}}}'
  type: kubernetes.io/dockerconfigjson
EOF

We also need the credentials to access the BMC in order to mount the configuration ISO and boot the node automatically:

cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-configs/pre-reqs/sno-ibi/bmc-credentials.yaml
---
apiVersion: v1
kind: Secret
metadata:
  name: sno-ibi-bmc-credentials
  namespace: sno-ibi
data:
  username: "YWRtaW4="
  password: "YWRtaW4="
type: Opaque
EOF

Next, we must create a ConfigMap resource to define additional manifests for our image-based deployment. Based on our seed image, we have to define:

The disconnected catalog source that will allow us to install additional operators in the target SNO cluster.
The LVMCluster configuration for the LVM Operator. Note that the LVM Operator was included in the seed image.
The ImageDigestMirrorSet, which is required in our disconnected environment.

Remember that, during seed image generation, the catalog sources are removed from the seed image. Also, the LVMCluster CR is not allowed to exist in the seed cluster; it has to be added during the reconfiguration process. More information on the prerequisites for generating a seed image can be found here.

cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-configs/pre-reqs/sno-ibi/ibi_extra_manifests.yaml
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: disconnected-ran-config
  namespace: sno-ibi
data:
  redhat-operator-index.yaml: |
    apiVersion: operators.coreos.com/v1alpha1
    kind: CatalogSource
    metadata:
      annotations:
        target.workload.openshift.io/management: '{"effect": "PreferredDuringScheduling"}'
      name: redhat-operator-index
      namespace: openshift-marketplace
    spec:
      displayName: default-cat-source
      image: infra.5g-deployment.lab:8443/redhat/redhat-operator-index:v4.19-1754067857
      publisher: Red Hat
      sourceType: grpc
      updateStrategy:
        registryPoll:
          interval: 1h
  lvmcluster.yaml: |
    apiVersion: lvm.topolvm.io/v1alpha1
    kind: LVMCluster
    metadata:
      name: lvmcluster
      namespace: openshift-storage
    spec:
      storage:
        deviceClasses:
        - deviceSelector:
            paths:
            - /dev/vdb
          fstype: xfs
          name: vg1
          thinPoolConfig:
            chunkSizeCalculationPolicy: Static
            metadataSizeCalculationPolicy: Host
            name: thin-pool-1
            overprovisionRatio: 10
            sizePercent: 90
  ImageDigestSources.yaml: |
    apiVersion: config.openshift.io/v1
    kind: ImageDigestMirrorSet
    metadata:
      name: image-digest-mirror
    spec:
      imageDigestMirrors:
      - mirrors:
        - infra.5g-deployment.lab:8443/openshift4
        source: registry.redhat.io/openshift4
      - mirrors:
        - infra.5g-deployment.lab:8443/rhacm2
        source: registry.redhat.io/rhacm2
      - mirrors:
        - infra.5g-deployment.lab:8443/rhceph
        source: registry.redhat.io/rhceph
      - mirrors:
        - infra.5g-deployment.lab:8443/rhel8
        source: registry.redhat.io/rhel8
      - mirrors:
        - infra.5g-deployment.lab:8443/rh-sso-7
        source: registry.redhat.io/rh-sso-7
      - mirrors:
        - infra.5g-deployment.lab:8443/odf4
        source: registry.redhat.io/odf4
      - mirrors:
        - infra.5g-deployment.lab:8443/multicluster-engine
        source: registry.redhat.io/multicluster-engine
      - mirrors:
        - infra.5g-deployment.lab:8443/openshift-gitops-1
        source: registry.redhat.io/openshift-gitops-1
      - mirrors:
        - infra.5g-deployment.lab:8443/lvms4
        source: registry.redhat.io/lvms4
      - mirrors:
        - infra.5g-deployment.lab:8443/rh-osbs
        source: quay.io/prega/test/rh-osbs
      - mirrors:
        - infra.5g-deployment.lab:8443/oadp
        source: registry.redhat.io/oadp
      - mirrors:
        - infra.5g-deployment.lab:8443/openshift-logging
        source: registry.redhat.io/openshift-logging
      - mirrors:
        - infra.5g-deployment.lab:8443/openshift/release
        source: quay.io/openshift-release-dev/ocp-v4.0-art-dev
      - mirrors:
        - infra.5g-deployment.lab:8443/openshift/release-images
        source: quay.io/openshift-release-dev/ocp-release
    status: {}
EOF

Finally, add the Kustomization files so that the previous manifests can be applied using a ZTP GitOps workflow.

cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-configs/pre-reqs/sno-ibi/kustomization.yaml
---
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
  - bmc-credentials.yaml
  - pull-secret.yaml
  - ns.yaml
  - ibi_extra_manifests.yaml
EOF

cat <<EOF > ~/5g-deployment-lab/ztp-repository/site-configs/pre-reqs/kustomization.yaml
---
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
  - sno-abi/
  - sno-ibi/
EOF

Eventually, let’s create the ClusterInstance CR, which is an abstraction layer on top of the different components managed by the SiteConfig Operator used to deploy an OpenShift cluster. Note that in this installation we are using the Image Based Installation flow. We can see that by checking the templateRefs specifications: ibi-node-templates-v1 and ibi-cluster-templates-v1, which are the default templates for IBI.

The SiteConfig Operator transforms the ClusterInstance CR into multiple Installation Manifests, as detailed in the Image Based Installation section. With some of those manifests that define site-specific resources, the IBI operator creates a configuration ISO to start the reconfiguration process.

cat << 'EOF' > ~/5g-deployment-lab/ztp-repository/site-configs/hub-1/ocp-sno-ibi.yaml
---
apiVersion: siteconfig.open-cluster-management.io/v1alpha1
kind: ClusterInstance
metadata:
  name: "ocp-sno-ibi"
  namespace: "sno-ibi"
spec:
  additionalNTPSources:
    - "clock.corp.redhat.com"
  baseDomain: "5g-deployment.lab"
  # The active-ocp-version" points to a ClusterImageSet resource, which defines the specific OpenShift release image (e.g., v4.19.0) that the cluster should be deployed with. This abstraction allows for easier management of OpenShift versions.
  clusterImageSetNameRef: "active-ocp-version"
  clusterName: "sno-ibi"
  clusterNetwork:
    - cidr: "10.128.0.0/14"
      hostPrefix: 23
  cpuPartitioningMode: AllNodes
  extraLabels:
    ManagedCluster:
      common: "ocp419"
      logicalGroup: "active"
      group-du-sno: ""
      du-site: "sno-ibi"
      hardware-type: "hw-type-platform-1"
  holdInstallation: false
  extraManifestsRefs:
    - name: disconnected-ran-config
  machineNetwork:
    - cidr: "192.168.125.0/24"
  networkType: "OVNKubernetes"
  pullSecretRef:
    name: "disconnected-registry-pull-secret"
  serviceNetwork:
    - cidr: "172.30.0.0/16"
  sshPublicKey: "ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAACAQC5pFKFLOuxrd9Q/TRu9sRtwGg2PV+kl2MHzBIGUhCcR0LuBJk62XG9tQWPQYTQ3ZUBKb6pRTqPXg+cDu5FmcpTwAKzqgUb6ArnjECxLJzJvWieBJ7k45QzhlZPeiN2Omik5bo7uM/P1YIo5pTUdVk5wJjaMOb7Xkcmbjc7r22xY54cce2Wb7B1QDtLWJkq++eJHSX2GlEjfxSlEvQzTN7m2N5pmoZtaXpLKcbOqtuSQSVKC4XPgb57hgEs/ZZy/LbGGHZyLAW5Tqfk1JCTFGm6Q+oOd3wAOF1SdUxM7frdrN3UOB12u/E6YuAx3fDvoNZvcrCYEpjkfrsjU91oz78aETZV43hOK9NWCOhdX5djA7G35/EMn1ifanVoHG34GwNuzMdkb7KdYQUztvsXIC792E2XzWfginFZha6kORngokZ2DwrzFj3wgvmVyNXyEOqhwi6LmlsYdKxEvUtiYhdISvh2Y9GPrFcJ5DanXe7NVAKXe5CyERjBnxWktqAPBzXJa36FKIlkeVF5G+NWgufC6ZWkDCD98VZDiPP9sSgqZF8bSR4l4/vxxAW4knKIZv11VX77Sa1qZOR9Ml12t5pNGT7wDlSOiDqr5EWsEexga/2s/t9itvfzhcWKt+k66jd8tdws2dw6+8JYJeiBbU63HBjxCX+vCVZASrNBjiXhFw=="
  # override required for rhcos 419.9.16
  ignitionConfigOverride: '{"ignition":{"version":"3.2.0"},"storage":{"files":[{"path":"/etc/containers/policy.json","mode":420,"overwrite":true,"contents":{"source":"data:text/plain;charset=utf-8;base64,ewogICAgImRlZmF1bHQiOiBbCiAgICAgICAgewogICAgICAgICAgICAidHlwZSI6ICJpbnNlY3VyZUFjY2VwdEFueXRoaW5nIgogICAgICAgIH0KICAgIF0sCiAgICAidHJhbnNwb3J0cyI6CiAgICAgICAgewogICAgICAgICAgICAiZG9ja2VyLWRhZW1vbiI6CiAgICAgICAgICAgICAgICB7CiAgICAgICAgICAgICAgICAgICAgIiI6IFt7InR5cGUiOiJpbnNlY3VyZUFjY2VwdEFueXRoaW5nIn1dCiAgICAgICAgICAgICAgICB9CiAgICAgICAgfQp9"}}]}}'
  templateRefs:
    - name: ibi-cluster-templates-v1
      namespace: open-cluster-management
  nodes:
    - automatedCleaningMode: "disabled"
      bmcAddress: "redfish-virtualmedia://192.168.125.1:9000/redfish/v1/Systems/local/sno-ibi"
      bmcCredentialsName:
        name: "sno-ibi-bmc-credentials"
      bootMACAddress: "AA:AA:AA:AA:04:01"
      bootMode: "UEFI"
      hostName: "ocp-sno-ibi.sno-ibi.5g-deployment.lab"
      nodeNetwork:
        interfaces:
          - name: "enp3s0"
            macAddress: "AA:AA:AA:AA:04:01"
        config:
          interfaces:
            - name: enp3s0
              type: ethernet
              state: up
              ipv4:
                enabled: true
                dhcp: true
              ipv6:
                enabled: false
      role: "master"
      rootDeviceHints:
        deviceName: "/dev/vda"
      templateRefs:
        - name: ibi-node-templates-v1
          namespace: open-cluster-management
EOF

Add the Kustomization file to pull the ClusterInstance that was recently created:

cat << 'EOF' > ~/5g-deployment-lab/ztp-repository/site-configs/kustomization.yaml
---
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
  - pre-reqs/
  - resources/
  - hub-1/ocp-sno-abi.yaml
  - hub-1/ocp-sno-ibi.yaml

configMapGenerator:
  - files:
    - reference-manifest/4.19/01-container-mount-ns-and-kubelet-conf-master.yaml
    - reference-manifest/4.19/01-container-mount-ns-and-kubelet-conf-worker.yaml
    - reference-manifest/4.19/01-disk-encryption-pcr-rebind-master.yaml
    - reference-manifest/4.19/01-disk-encryption-pcr-rebind-worker.yaml
    - reference-manifest/4.19/03-sctp-machine-config-master.yaml
    - reference-manifest/4.19/03-sctp-machine-config-worker.yaml
    - reference-manifest/4.19/06-kdump-master.yaml
    - reference-manifest/4.19/06-kdump-worker.yaml
    - reference-manifest/4.19/07-sriov-related-kernel-args-master.yaml
    - reference-manifest/4.19/07-sriov-related-kernel-args-worker.yaml
    - reference-manifest/4.19/08-set-rcu-normal-master.yaml
    - reference-manifest/4.19/08-set-rcu-normal-worker.yaml
    - reference-manifest/4.19/09-openshift-marketplace-ns.yaml
    - reference-manifest/4.19/99-crio-disable-wipe-worker.yaml
    - reference-manifest/4.19/99-sync-time-once-master.yaml
    - reference-manifest/4.19/99-crio-disable-wipe-master.yaml
    - reference-manifest/4.19/99-sync-time-once-worker.yaml
    - hub-1/extra-manifest/enable-crun-master.yaml
    - hub-1/extra-manifest/enable-crun-worker.yaml
    name: ran-rds-419-manifests
    namespace: sno-abi

generatorOptions:
  disableNameSuffixHash: true
EOF

Finally, commit all these changes to our Git Server repository.

cd ~/5g-deployment-lab/ztp-repository/site-configs/
git add --all
git commit -m 'Added SNO IBI cluster using image-based install flow'
git push origin main
cd ~

Deploying the SNO Cluster using the ZTP GitOps Pipeline

When we applied the ZTP GitOps Pipeline configuration in the last section, the clusters ArgoCD application was configured to automatically synchronize the committed changes. This means that ArgoCD should have started deploying the cluster. Let’s check Argo CD to see what has happened.

Log in to Argo CD.
When accessing, choose Log in with OpenShift. On the next screen, use the OpenShift Console Admin credentials.

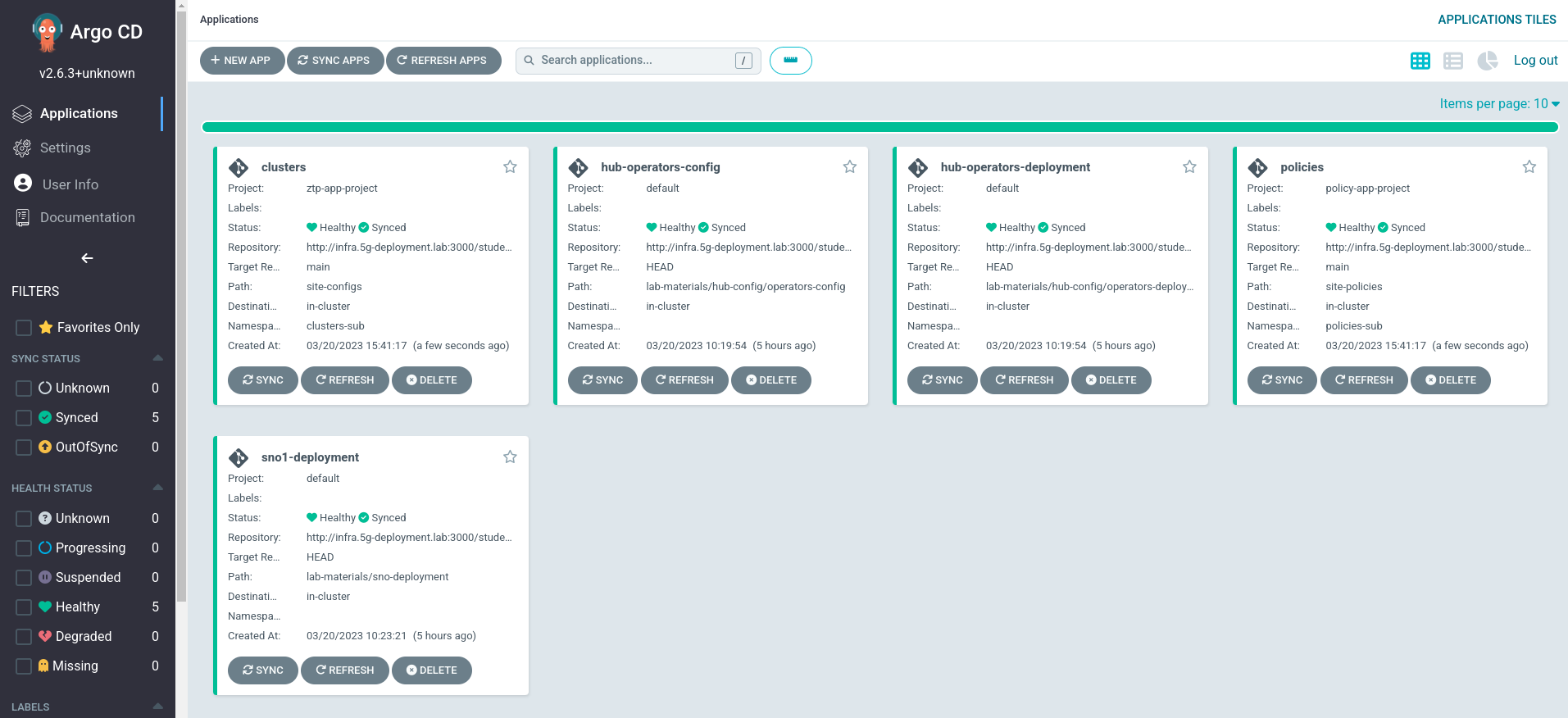

You should see the following applications:
From all these apps, the ones related to the ZTP GitOps Pipeline are clusters and policies. If we click on clusters, we will see the following screen:

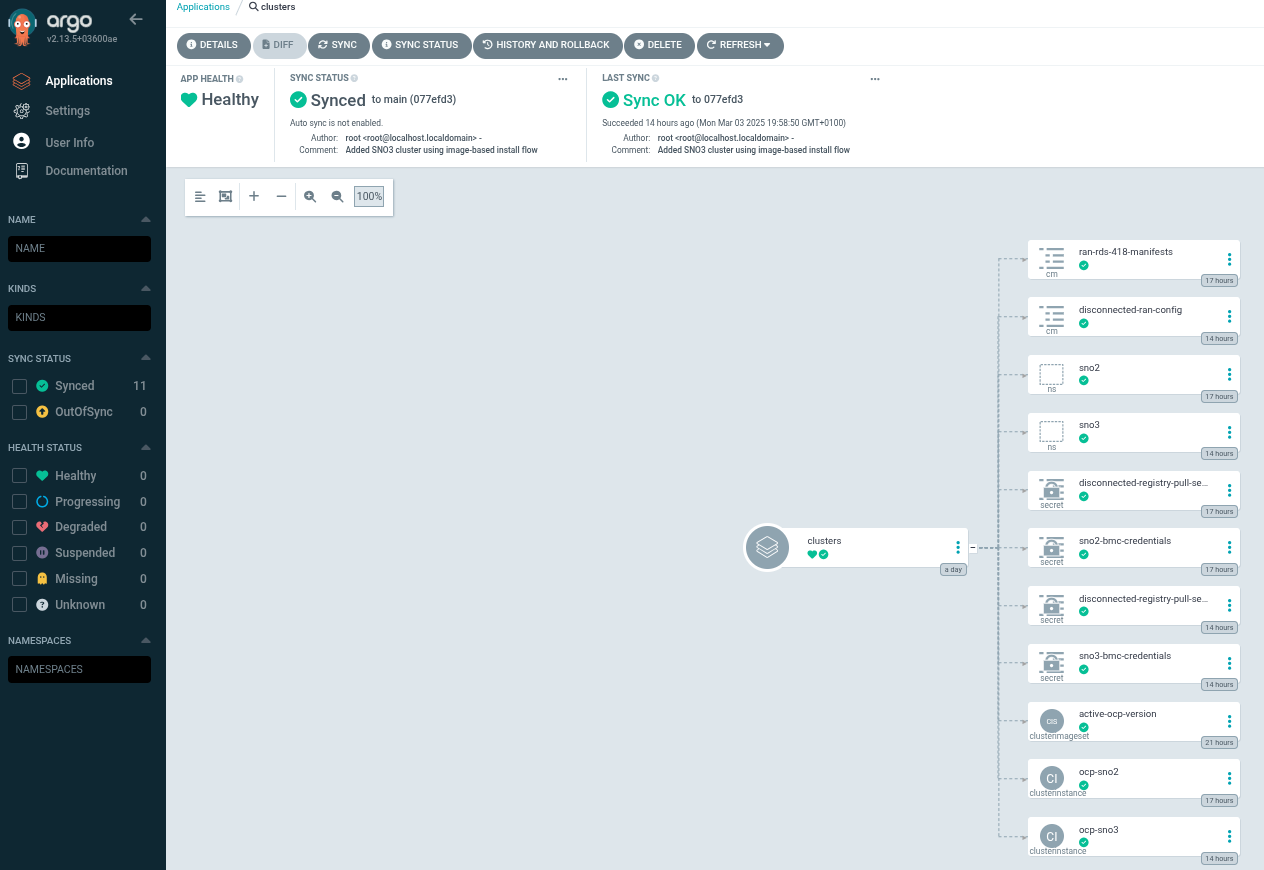

You can see how the pipeline created all the required objects to get sno-ibi deployed. Notice also that the sno-abi objects are present from the previous configuration.

Completing the Installation

With the changes committed and pushed to the Git repository, the OpenShift GitOps operator takes over to reconcile them. Now, let’s monitor the status of the reconfiguration process. Use the following command to track progress from the hub cluster. Notice the dataimage object, which contains information about the configuration ISO created in the previous section, Creating the Configuration ISO.

oc --kubeconfig ~/hub-kubeconfig -n sno-ibi get bmh,clusterinstance,clusterdeployment,imageclusterinstall,dataimage

NAMESPACE   NAME                               STATE                    CONSUMER   ONLINE   ERROR   AGE
sno-ibi        baremetalhost.metal3.io/ocp-sno-ibi   externally provisioned              true             35s

NAME                                                             PAUSED   PROVISIONSTATUS   PROVISIONDETAILS         AGE
clusterinstance.siteconfig.open-cluster-management.io/ocp-sno-ibi            Completed         Provisioning completed   9h

NAMESPACE   NAME                                       INFRAID                                PLATFORM          REGION   VERSION       CLUSTERTYPE   PROVISIONSTATUS   POWERSTATE   AGE
sno-ibi        clusterdeployment.hive.openshift.io/sno-ibi   sno-ibi-zrts7                             none-platform                                          Provisioning                   35s

NAMESPACE   NAME                                                    REQUIREMENTSMET           COMPLETED                      BAREMETALHOSTREF
sno-ibi        imageclusterinstall.extensions.hive.openshift.io/sno-ibi   HostValidationSucceeded   ClusterInstallationInProgress   ocp-sno-ibi

NAMESPACE   NAME                           AGE
sno-ibi        dataimage.metal3.io/ocp-sno-ibi   34s

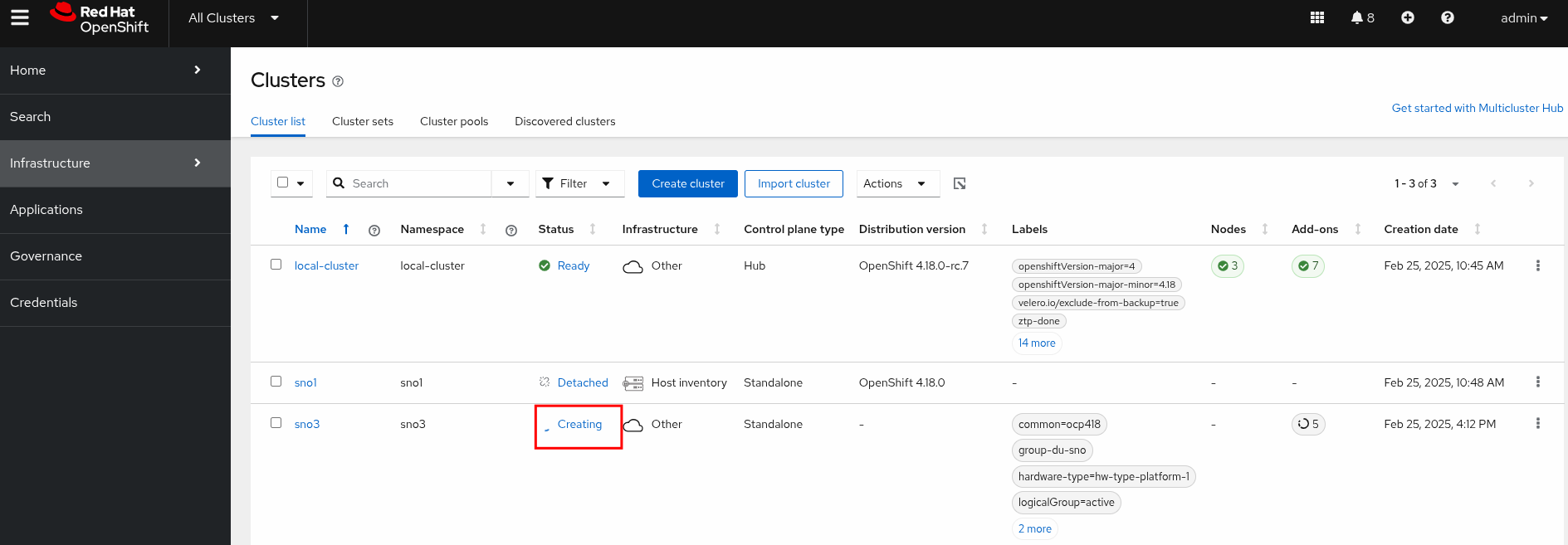

You can also observe the progress from the Red Hat ACM console in the hub cluster.

To check the OpenShift installation progress in the target cluster, we need the sno-ibi credentials. Obtain them from the hub cluster using this command:

The command below may timeout if the SNO API is still starting, give it up to 10 minutes for the API to start responding.

oc --kubeconfig ~/hub-kubeconfig -n sno-ibi extract secret/sno-ibi-admin-kubeconfig --to=- > ~/ibi-cluster-kubeconfig

Now that we have the sno-ibi admin credentials, let’s examine the current status of the cluster and how the various cluster operators are advancing:

oc --kubeconfig ~/ibi-cluster-kubeconfig get clusterversion,nodes,mcp,co

NAME                                         VERSION	   AVAILABLE   PROGRESSING   SINCE   STATUS
clusterversion.config.openshift.io/version   4.19.0   False       False         4h54m   Error while reconciling 4.19.0: an unknown error has occurred: MultipleErrors

NAME                                   STATUS   ROLES                         AGE     VERSION
node/ocp-sno-ibi.sno-ibi.5g-deployment.lab   Ready    control-plane,master,worker   6m40s   v1.31.4

NAME                                                         CONFIG                                             UPDATED   UPDATING   DEGRADED   MACHINECOUNT   READYMACHINECOUNT   UPDATEDMACHINECOUNT   DEGRADEDMACHINECOUNT   AGE
machineconfigpool.machineconfiguration.openshift.io/master   rendered-master-484df4de53ef04b47b119185a6025d18   True	  False      False	1              1                   1                     0                      5h14m
machineconfigpool.machineconfiguration.openshift.io/worker   rendered-worker-ca41ad0a46d9e710d6540dafbcbbb473   True	  False      False	0              0                   0                     0                      5h14m

NAME                                                                           VERSION       AVAILABLE   PROGRESSING   DEGRADED   SINCE   MESSAGE
clusteroperator.config.openshift.io/authentication                             4.19.0   False	 False         True	  5m39s   OAuthServerRouteEndpointAccessibleControllerAvailable: Get "https://oauth-openshift.apps.sno-ibi.5g-deployment.lab/healthz": EOF
clusteroperator.config.openshift.io/config-operator                            4.19.0   True        False         False	  5h14m
clusteroperator.config.openshift.io/dns                                        4.19.0   True        False         False	  5m25s
clusteroperator.config.openshift.io/etcd                                       4.19.0   True        False         False	  5h5m
clusteroperator.config.openshift.io/ingress                                    4.19.0   True        False         True	  5m38s   The "default" ingress controller reports Degraded=True: DegradedConditions: One or more other status
 conditions indicate a degraded state: CanaryChecksSucceeding=Unknown (CanaryRouteNotAdmitted: Canary route is not admitted by the default ingress controller)
clusteroperator.config.openshift.io/kube-apiserver                             4.19.0   True        False         False	  4h54m
clusteroperator.config.openshift.io/kube-controller-manager                    4.19.0   True        False         False	  4h57m
clusteroperator.config.openshift.io/kube-scheduler                             4.19.0   True        False         False	  5h2m
clusteroperator.config.openshift.io/kube-storage-version-migrator              4.19.0   True        False         False	  5h14m
clusteroperator.config.openshift.io/machine-approver                           4.19.0   True        False         False	  5h14m
clusteroperator.config.openshift.io/machine-config                             4.19.0   True        False         False	  5h14m
clusteroperator.config.openshift.io/monitoring                                 4.19.0   True        False         False	  4h57m
clusteroperator.config.openshift.io/network                                    4.19.0   True        False         False	  5h14m
clusteroperator.config.openshift.io/node-tuning                                4.19.0   True        False         False	  5m38s
clusteroperator.config.openshift.io/openshift-apiserver                        4.19.0   True        False         False	  5m32s
clusteroperator.config.openshift.io/openshift-controller-manager               4.19.0   True        False         False	  5m22s
clusteroperator.config.openshift.io/operator-lifecycle-manager                 4.19.0   True        False         False	  5h14m
clusteroperator.config.openshift.io/operator-lifecycle-manager-catalog         4.19.0   True        False         False	  5h14m
clusteroperator.config.openshift.io/operator-lifecycle-manager-packageserver   4.19.0   True        False         False	  5m31s
clusteroperator.config.openshift.io/service-ca                                 4.19.0   True        False         False	  5h14m

The installation process typically takes less than 10 minutes. You can confirm that the reconfiguration was successful by running the following command from the hub cluster.

Verify that the clusterInstance is shown as "Provisioning completed", the imageclusterinstall status is ClusterInstallationSucceeded, and the clusterdeployment is Provisioned.

oc --kubeconfig ~/hub-kubeconfig -n sno-ibi get bmh,clusterinstance,clusterdeployment,imageclusterinstall,dataimage

NAME                               STATE                    CONSUMER   ONLINE   ERROR   AGE
baremetalhost.metal3.io/ocp-sno-ibi   externally provisioned              true             32m

NAME                                                             PAUSED   PROVISIONSTATUS   PROVISIONDETAILS         AGE
clusterinstance.siteconfig.open-cluster-management.io/ocp-sno-ibi            Completed         Provisioning completed   32m

NAME                                       INFRAID      PLATFORM        REGION   VERSION       CLUSTERTYPE   PROVISIONSTATUS   POWERSTATE   AGE
clusterdeployment.hive.openshift.io/sno-ibi   sno-ibi-vcd52   none-platform            4.19.0                 Provisioned       Running      32m

NAME                                                    REQUIREMENTSMET           COMPLETED                      BAREMETALHOSTREF
imageclusterinstall.extensions.hive.openshift.io/sno-ibi   HostValidationSucceeded   ClusterInstallationSucceeded   ocp-sno-ibi

NAME                           AGE
dataimage.metal3.io/ocp-sno-ibi   32m

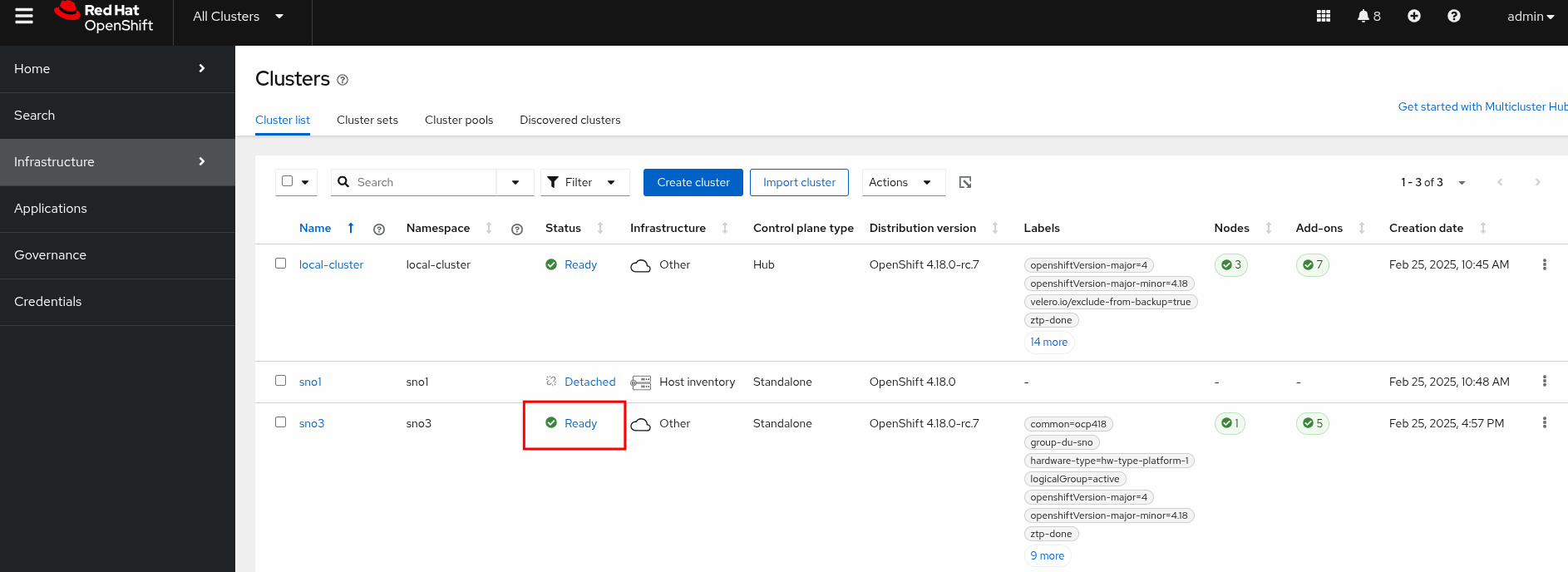

The Red Hat ACM console will also reflect that the sno-ibi OpenShift cluster is Ready:

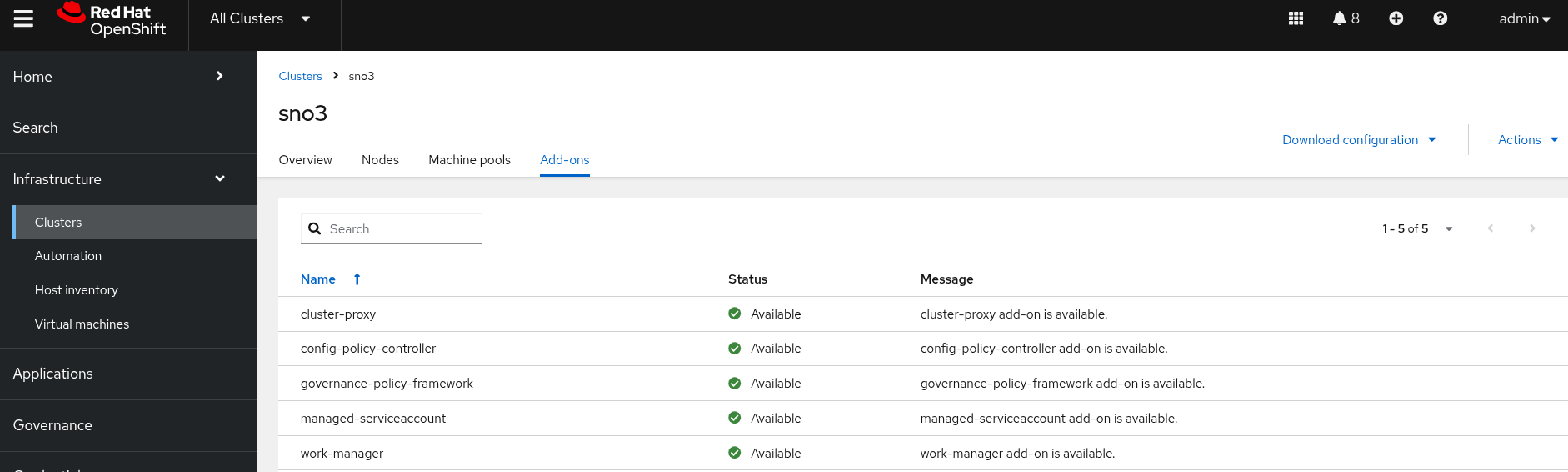

The add-ons applied via the KlusterletAddonConfig CR are installed and available as well:

Verifying the RAN DU Configuration

As explained in the ZTP Workflow section, the process culminates with the CNF workload deployed and running on the site nodes. While the workload isn’t yet deployed, the foundation is set with the Telco RAN DU reference configuration applied.

First, confirm that OpenShift, specifically the platform, is installed with version 4.19.0:

oc --kubeconfig ~/ibi-cluster-kubeconfig get clusterversion,nodes

NAME                                         VERSION       AVAILABLE   PROGRESSING   SINCE   STATUS
clusterversion.config.openshift.io/version   4.19.0   True        False         6h4m    Cluster version is 4.19.0

NAME                                   STATUS   ROLES                         AGE   VERSION
node/ocp-sno-ibi.sno-ibi.5g-deployment.lab   Ready    control-plane,master,worker   32m   v1.32.5

Check the installed operators. These operators were included in the seed image:

oc --kubeconfig ~/ibi-cluster-kubeconfig get operators

NAME                                                      AGE
cluster-logging.openshift-logging                         3h51m
lifecycle-agent.openshift-lifecycle-agent                 3h51m
lvms-operator.openshift-storage                           3h51m
ptp-operator.openshift-ptp                                3h51m
redhat-oadp-operator.openshift-adp                        3h51m
sriov-network-operator.openshift-sriov-network-operator   3h51m

Verify that the LVMS Operator is ready to provision persistent storage for the cluster. Recall that we added an extra-manifest in the form of a ConfigMap to our image-based installation to configure it.

oc --kubeconfig ~/ibi-cluster-kubeconfig get sc,lvmcluster -A

NAME                                   PROVISIONER   RECLAIMPOLICY   VOLUMEBINDINGMODE      ALLOWVOLUMEEXPANSION   AGE
storageclass.storage.k8s.io/lvms-vg1   topolvm.io    Delete          WaitForFirstConsumer   true                   32m

NAMESPACE           NAME                                   STATUS
openshift-storage   lvmcluster.lvm.topolvm.io/lvmcluster   Ready

Confirm that the SR-IOV interfaces are ready for use by our CNFs and that the performance profile has been applied:

The SR-IOV configuration was included in the seed cluster because the hardware of both the seed and target clusters was identical. If the SR-IOV configuration differs, it can be included as another extra-manifest, similar to how the LVM operator was reconfigured. Further information can be found here.

oc --kubeconfig ~/ibi-cluster-kubeconfig describe node | grep Allocatable: -A10

Allocatable:
  cpu:                                     8
  ephemeral-storage:                       56362847342
  hugepages-1Gi:                           4Gi
  hugepages-2Mi:                           0
  management.workload.openshift.io/cores:  12k
  memory:                                  13530204Ki
  openshift.io/virt-enp4s0:                2 // 2x sr-iov vf
  openshift.io/virt-enp5s0:                2 // 2x sr-iov vf
  pods:                                    250

oc --kubeconfig ~/ibi-cluster-kubeconfig get performanceprofile

NAME                                 AGE
openshift-node-performance-profile   6h24m

At this point, the sno-ibi is deployed and configured with the RAN DU profile, making it ready to run telco CNF applications.
